Product Description

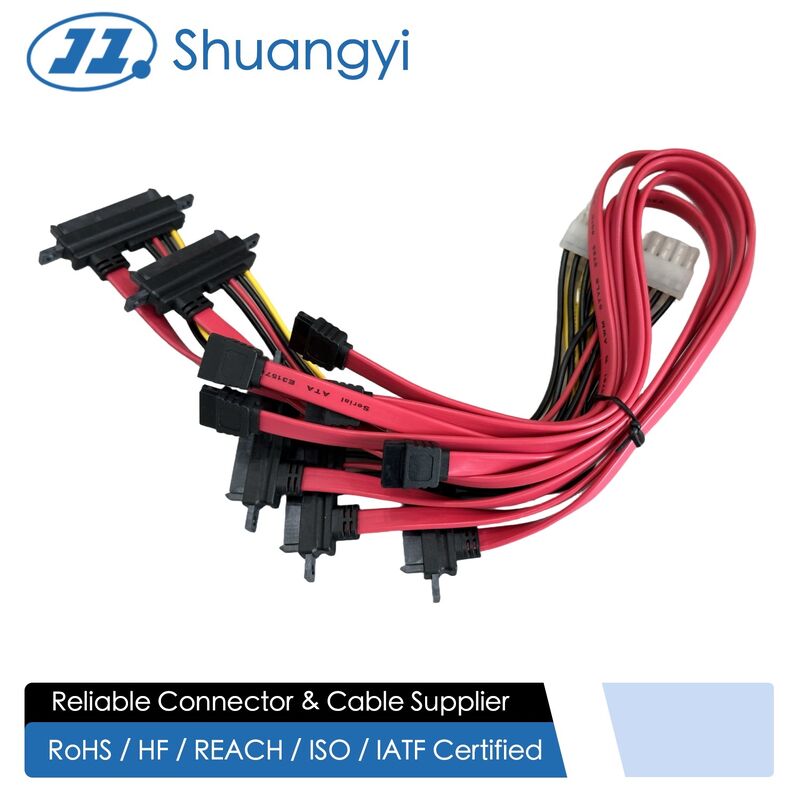

This multi-port SATA connector harness combines several red Serial ATA cables and matching power wires into one compact assembly, allowing a single power input to feed multiple HDD or SSD drives while providing stable high-speed signal transmission. Each SATA plug integrates 7-pin data and 15-pin power terminals, using low-loss copper conductors to ensure reliable operation for 6 Gb/s interfaces in demanding electronic systems.

The harness routes a group of yellow, red and black power wires from a common 4Pin input (or customized PCB connector) to each SATA output, simplifying wiring inside dense storage enclosures. Robust molded housings and strain relief help protect the pins and contacts against vibration in rack servers, NAS units and industrial recorders. The design supports extensive customization of length, SATA quantity and connector type for OEM storage backplanes, DVR systems and specialized equipment.

Applications

Server, workstation and NAS chassis connecting multiple 2.5"/3.5" SATA HDD / SSD from one power feed

Disk array and RAID backplanes requiring organized SATA data and power harnesses

DVR, NVR and data-logging systems in industrial and automotive monitoring equipment

Compact storage modules or external disk cages where neat, grouped wire cable management is required

Custom PCB or metal rack assemblies needing multi-drop SATA power and data connectors
