Product Description

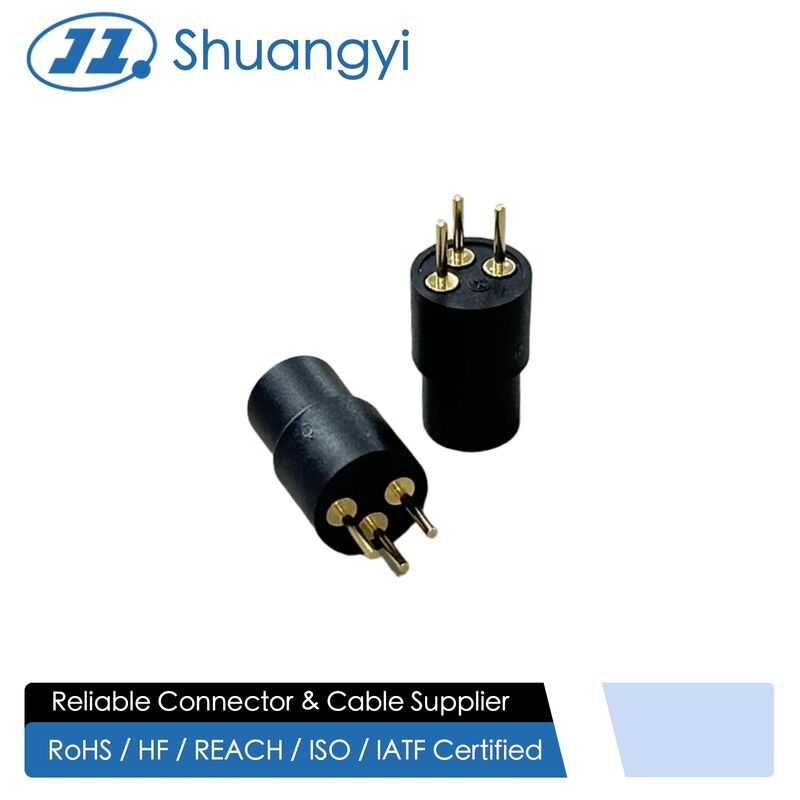

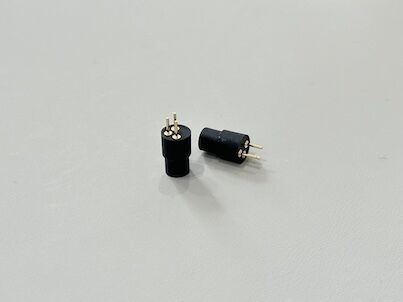

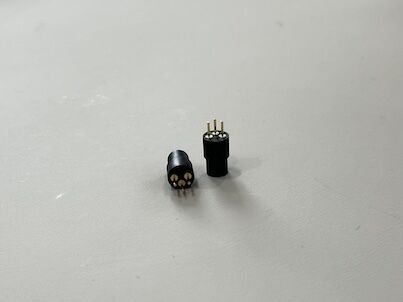

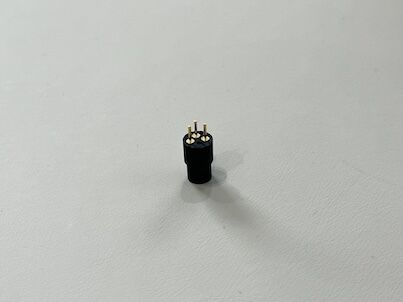

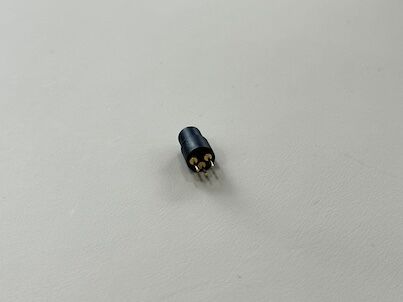

This 3-pin DC plug connector is designed for reliable low-voltage power transmission in compact PCB layouts. Built with precision-formed copper alloy terminals and gold-flash plating, it ensures stable conductivity, corrosion resistance, and long-term durability. The 3.6 mm pin pitch and 5.8 × 7.0 × 15 mm compact size allow easy integration into high-density circuits. The connector features reinforced housing made from high-temperature engineering plastic, delivering excellent mechanical strength and consistent soldering stability. Suitable for customized electrical designs, wire harness assembly, and various PCB power interfaces.

Applications

Consumer electronics power modules

Smart home devices

Automotive dashboards and control units

Industrial controllers and monitoring equipment

Communication devices and handheld terminals

Customized wire harness and PCB interface solutions

Precautions

Ensure proper soldering temperature to avoid terminal deformation.

Verify current and voltage requirements before designing into the system.

Avoid excessive pulling force on the connector after soldering.

Gold-flash plating thickness can be customized according to project durability needs.

Keep connector protected from dust and moisture during storage and assembly.
