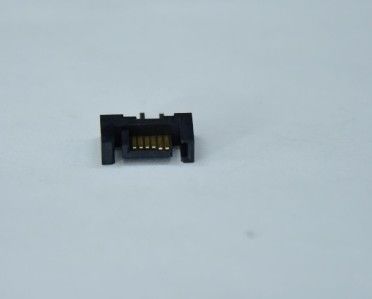

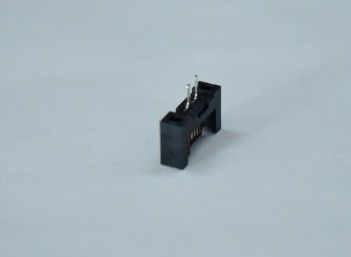

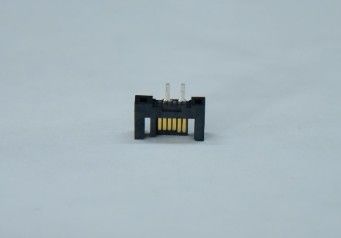

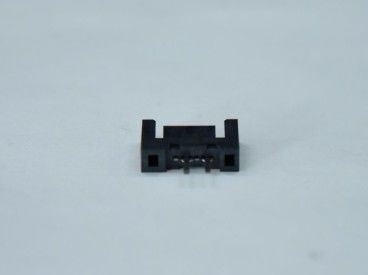

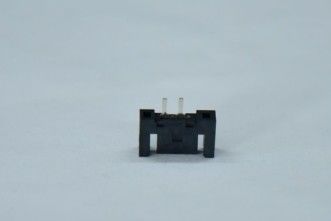

SATA 6p/Male Solder Type Au 6/F Plated Wire to Board Connector

I. Basic Information
Product Name: SATA 6P/Male Solder Type Au 6/F Plated Wire to Board Connector
Number of pins: 6P (means the connector has 6 pins)
Gender: Male (male)
Connection type: Solder Type for soldering the connector to the board
Plating: Au 6/F (indicates that the thickness of the gold plating layer is 6 micro inches or similar gold plating specifications, used to improve the conductivity and corrosion resistance of the connector)
Interface type: Wire to Board (wire to board), used to connect the cable and the board

Second, the technical characteristics
1. Gold-plated pins: The pin surface is gold-plated to a thickness of 6 micro inches, providing good electrical connection performance and corrosion resistance.
2. Solder mounting: The connector is fixed on the circuit board by soldering to ensure the stability and reliability of the connection.
3. Miniaturized design: The 6P design makes the connector compact and suitable for use in electronic devices with limited space.
4. High compatibility: Compliant with SATA standards, compatible with a variety of SATA interface devices, such as solid state drives, portable hard drives, etc.

Three, application areas
Mainly used in electronic devices that require SATA interface connection, such as computer motherboards, adapter boards, storage devices and so on.
It is suitable for the scenarios that have certain requirements on data transmission rate and stability.

Precautions
During installation, please ensure the welding quality to avoid false welding or short circuit phenomenon.
Please check whether the pins of the connector are intact and not bent or damaged before use.
Please install and use the connector correctly according to the product manual or relevant specifications.
