SATA 07p/M SMT Type Au G/F Plated Wire to Board Connector

Product Overview

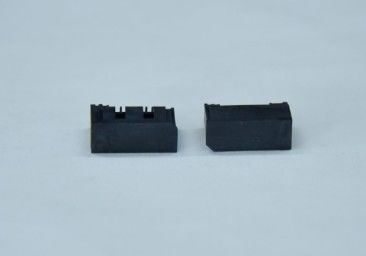

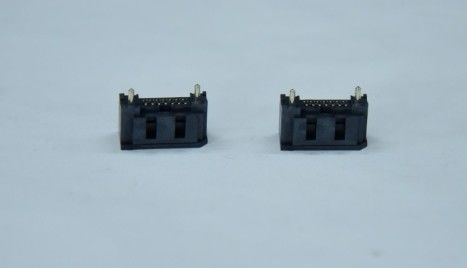

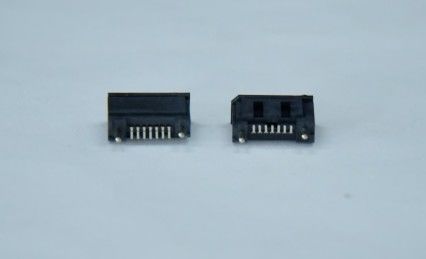

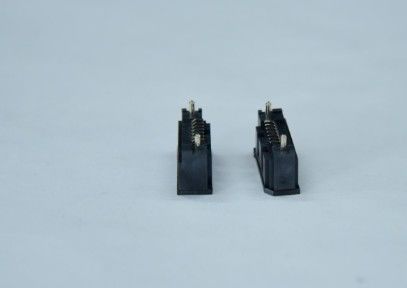

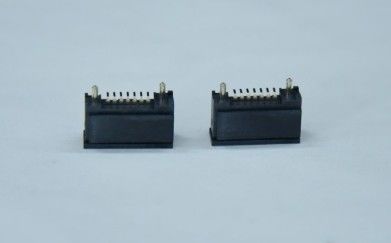

Product Name: SATA 07P/M SMT Type Au G/F Plated Wire to Board Connector
Type: SATA connectors, specifically 7-pin/female chassis connector, surface mount type (SMT), lead to board connector.
Finish: Gold (Au)/Nickel (G/F) plated, this finish contributes to the connector's electrical conductivity, corrosion resistance and contact reliability.

Applications
SATA connectors are widely used in a variety of applications that require high speed data transfer and stable connections, including but not limited to:
Solid State Drives (SSD): to provide a stable interface for data transmission.
Mobile hard disk: facilitates convenient data storage and transmission.
Computer motherboard: As one of the important data interfaces on the motherboard.
Adapter board: To realize the conversion and connection between different interfaces.
Other communication devices: such as LCD monitors, telecommunication cards, memory, card readers, digital cameras, MP3, PDA, LCD TVs, switches, car alarms, videophones, cordless phones, set-top boxes, and hard disk recorders.

Product Features
1. High-speed data transmission: SATA interface supports high-speed data transmission to meet the demand for data transmission speed of modern devices.
2. Easy installation: Surface mount design makes the connector easier and faster to install.
3. Hot swapping support: Support hot swapping function, easy to plug and unplug the connector when the equipment is running.
4. Internal heat dissipation: Good heat dissipation performance helps to maintain stable operation of the equipment.
5. High capacity and high protection: Provides high capacity and high protection storage solution at an economical price.

Technical Specifications
Interface Type: SATA/ATA
Number of pins: 7-pin
Connection method: Surface Mount (SMT)
Surface Finish: Gold/Nickel plated
Electrical Performance: Including withstand voltage, insulation resistance, contact resistance and other parameters, the specific values need to refer to the product specifications.

Precautions
During use, please ensure that the pins of the connector are properly aligned with the corresponding sockets to avoid damage to the pins or sockets.
Please pay attention to the direction and position of the connector installation to ensure a stable and reliable connection.
When performing hot-swap operation, please make sure that the device has been properly recognized and allowed to perform hot-swap.

Conclusion
The SATA 07P/M SMT Type Au G/F Plated Wire to Board Connector is a high-performance, high-reliability connector product that is widely used in a variety of applications that require high-speed data transmission and stable connections. Its surface mount design and gold/nickel plated finish make the connector easy and reliable to install and use.
