SATA 06pin Famale Solder Type 180° Au 30u'' Plated Wire to Board Connector

SATA 06pin Famale Solder Type 180° Au 30u'' Plated Wire to Board Connector

Place of Origin:

China

Brand Name:

Shuangyi

Certification:

ISO9001,ISO14001

Model Number:

SATA-A06F-C1S14A6-000R

Contact Us
Request A Quote
Product Details
Payment & Shipping Terms
Minimum Order Quantity
5000size
Price
Negotiation
Packaging Details
1.Custom polybag packing 2.Custom paper box packing 3.According to client's request
Delivery Time
7~10 work days
Payment Terms
T/T
Supply Ability
1000000/Year
Product Description

Product Description
Product Name:SATA 06Pin Female Solder Type 180° Au 30u'' Plated Wire to Board Connector

Basic specification:
Number of terminals: 6Pin (i.e., 6-pin), designed for SATA interface to meet the needs of data transmission and power connection.
Type: Female, for use with the corresponding male connector.
Solder Type: Solder Type (Soldered), provides a solid electrical connection by soldering the connector to the board.
Angle: 180° (Straight or Right Angle), depending on the specific design, the connector may be inserted directly into the circuit board at an angle of 180° for ease of installation and layout.
Plating: Au 30u'' Plated (30 micro inches of gold plating), the gold plating provides excellent electrical conductivity, oxidation resistance and corrosion resistance, helping to ensure the stability and reliability of signal transmission.
Connection: Wire to Board, for connecting wires or cables to a circuit board.

Features and Benefits:
1. High conductivity: The gold-plated layer ensures good conductivity, reduces signal attenuation and interference, and improves the speed and stability of data transmission.
2. Corrosion resistance: The gold-plated layer effectively resists oxidation and corrosion, extending the life of the connector.
3. Solid Connection: Soldered design provides a solid electrical connection, reducing poor contact problems caused by vibration or loosening.
4. Easy to install: 180° design facilitates installation and layout in limited space, improving productivity.

Application Range:
The connector is widely used in electronic devices that require a SATA interface, such as solid state drives (SSDs), mobile hard disks, computer motherboards, and so on.
It is suitable for occasions with high requirements for data transmission rate and stability, such as servers, data centers, etc.

Caution:
During installation, the welding quality should be ensured to avoid problems such as false welding or short circuit.
When using the connector, you should pay attention to the environment of the connector, avoid using it in humid, high temperature or corrosive environment, so as not to affect the performance and life of the connector.
Regularly check the contact of the connector, if there is any loosening or corrosion phenomenon should be dealt with in time.

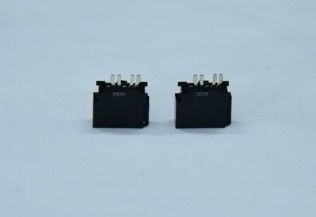

SATA 06pin Famale Solder Type 180° Au 30u'' Plated Wire to Board Connector 0

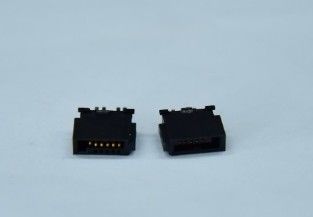

SATA 06pin Famale Solder Type 180° Au 30u'' Plated Wire to Board Connector 1

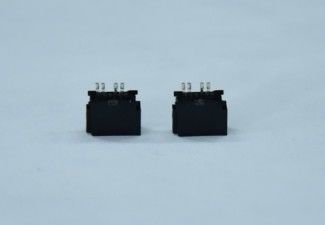

SATA 06pin Famale Solder Type 180° Au 30u'' Plated Wire to Board Connector 2

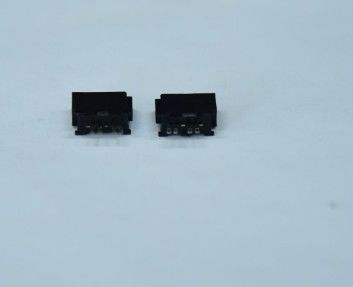

SATA 06pin Famale Solder Type 180° Au 30u'' Plated Wire to Board Connector 3

SATA 06pin Famale Solder Type 180° Au 30u'' Plated Wire to Board Connector 4
