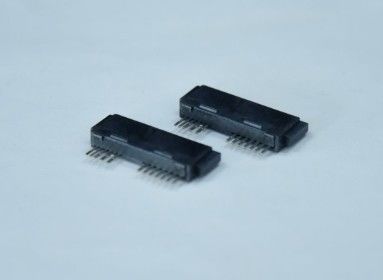

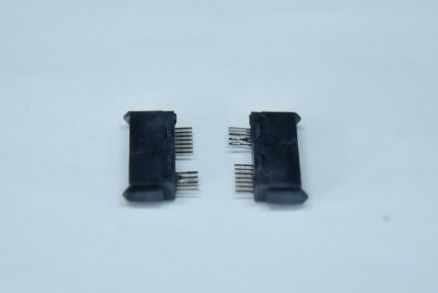

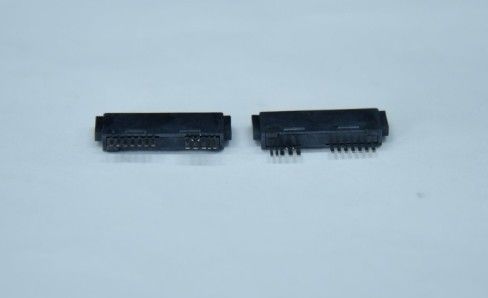

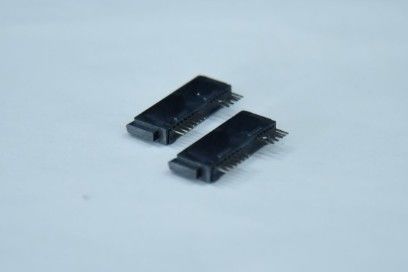

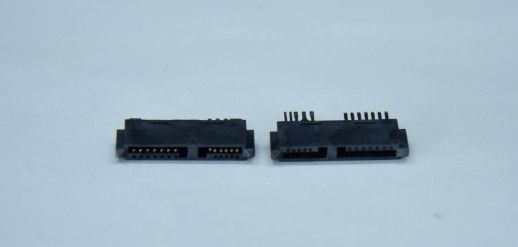

SATA 13p/F Solder Type 180° Au 6/F Plated Wire to Board Connector

Product Overview
Product Name: SATA 13P/F Solder Type 180° Au 6/F Plated Wire to Board Connector
Type: Wire-to-Board Connector
Interface Type: SATA 13Pin
Angle: 180°
Plating: Au 6/F (gold plating, thickness may vary depending on specific product)

Key Features
1. High Reliability: Made of high quality materials (such as copper alloy, gold plating, etc.) and superb craftsmanship to ensure high reliability and durability of the connector.
2. Excellent conductivity: Gold plating (Au 6/F) provides excellent conductivity and corrosion resistance, helping to reduce signal attenuation and contact resistance.
3. 180° Design: The unique 180° design makes the connector more flexible when installing and can adapt to different installation environments and space constraints.
4. Solder Type: As a Solder Type connector, it supports firm fixing on the board by soldering to provide a stable electrical connection.
5. Widely used: Suitable for a variety of electronic devices that require SATA interface connection, such as computers, servers, storage devices, etc.

Technical Specifications
Number of pins: 13Pin
Rated voltage: according to the specific product, generally tens of volts (V)
Rated current: depending on the specific product, usually a few amps (A)
Contact resistance: low, usually less than a few tens of milliohms (mΩ)
Insulation resistance: high, usually greater than several hundred megohms (MΩ)
Operating temperature range: -XX°C to +XX°C depending on the specific product

Application Areas
Computers and peripherals: such as desktops, laptops, servers, etc.
Storage devices: hard disk drives (HDD), solid state drives (SSD), etc.
Communication products: SATA interface may also be used in some communication devices for data transmission.
Consumer electronics products: Some high-end consumer electronics products may use SATA interface to connect internal components.

Caution
Before use, please make sure that the connector model and specification match your device requirements.
When installing, please follow the relevant installation guidelines and safety codes to ensure proper soldering and fixing.
Regularly check the contact and plating condition of the connectors and replace them if necessary to ensure stable operation of your device.
