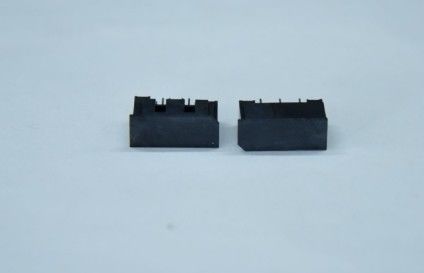

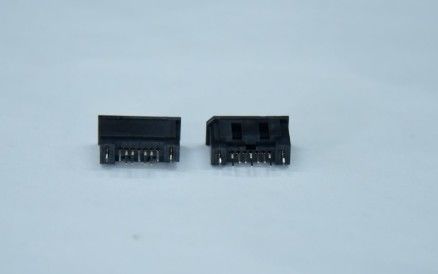

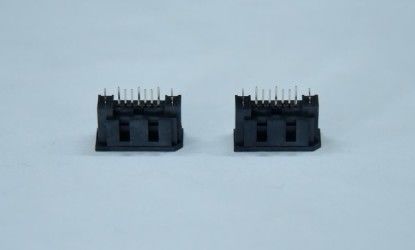

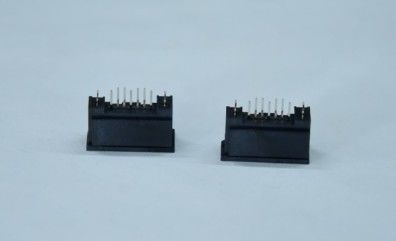

SATA 7p/M Package DIP Type 180° Wire to Board Connector

Basic Information
Type: SATA 7P/M Package DIP Type 180° Wire to Board Connector
Number of pins: 7 pins
Package Type: DIP (Dual Inline Package)
Angle: 180°
Connection Type: Wire to Board

Product Features
Easy installation: DIP package makes the connector installation process relatively simple, easy to locate and fix on the board.
High stability: The DIP package and 180° design improves the stability and reliability of the connector.
Good compatibility: Suitable for a wide range of SATA interface devices, such as SSDs, portable hard disks, etc.
Data Transfer: Supports high speed data transfer over SATA interface, providing excellent data transfer performance.

Technical Specifications
Electrical Performance:
Electrical performance such as voltage withstand and insulation resistance comply with SATA interface standards.
Supported transfer speeds may vary depending on the SATA version (e.g. SATA I, SATA II, SATA III, etc.).
Temperature range: typically have a certain temperature operating range, such as -40°C to +105°C (exact temperature range may vary by product).
Material:
Contacts may be made of phosphor bronze or other materials with good electrical conductivity and plated with gold or other surface treatments to improve corrosion resistance and electrical conductivity.
Insulator materials usually have good insulating properties and high temperature resistance.

Application Areas
The SATA 7P/M Package DIP Type 180° Wire to Board Connector is widely used in areas where a SATA interface connection is required, including but not limited to:
Computer motherboards
Solid State Drives (SSD)
Mobile Hard Drives
Adapter boards
Other communication devices requiring a SATA interface

Precautions
During use, please make sure that the pins of the connector correspond correctly with the soldering points of the board to avoid poor connection or damage due to soldering errors.
Please select the appropriate connection and installation method according to the product manual and actual situation.
During the storage and transportation of connectors and cables, please take care to avoid moisture, heat, pressure or other physical damage.
