Hot Swap Compatible SATA Data Connector for Flexibility and Efficiency

Hot Swap Compatible SATA Data Connector for Flexibility and Efficiency

Place of Origin:

China

Brand Name:

Shuangyi

Certification:

ISO9001,ISO14001

Model Number:

SATA-C07M-A5P13A5-00LH

Contact Us
Request A Quote
Product Details
Payment & Shipping Terms
Minimum Order Quantity
5000size
Price
Negotiation
Packaging Details
1.Custom polybag packing 2.Custom paper box packing 3.According to client's request
Delivery Time
7~10 work days
Payment Terms
T/T
Supply Ability
1000000/Year
Product Description

I. Basic overview

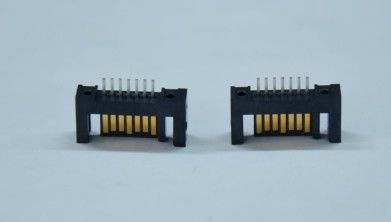

SATA 7P/M Solder Type Wire to Board Connector, 7-pin M design solder type wire to board connector.
Application: Widely used in solid-state hard disk (SSD), mechanical hard disk (HDD), optical drive and other storage devices and computer motherboard, server motherboard or other electronic equipment connection, to achieve efficient and stable data transmission.

II. product characteristics
1. High-speed transmission:
Support SATA interface high-speed data transmission features, providing stable and efficient data transmission rate. With the upgrade of the SATA standard (such as SATA 2.0, SATA 3.0, etc.), the connector can support higher data transmission speeds to meet the increasing data transmission needs.
2. Hot Swap support:
Allows storage devices to be connected or disconnected while the system is running, without shutting down the system, improving the flexibility and efficiency of data transfer. This is especially important when storage devices need to be frequently replaced or upgraded.
3. Compact design:
Compared to traditional parallel ATA (PATA) connectors, SATA connectors have a smaller size and fewer pins, helping to save space inside the device, making wiring more compact and flexible.
4. Stable and reliable:
Using differential signal transmission technology, with strong anti-interference ability, to ensure the stability and reliability of data transmission. At the same time, the connection mode of welding wire to the plate also enhances the stability of the connection.
5. Strong compatibility:
It has good compatibility and can connect SATA storage devices of different manufacturers and models, which is convenient for users to use and maintain.

III. Technical specifications
Pin count: 7 pins
Interface type: M type (usually refers to connection terminals with a specific shape and size to ensure the stability and accuracy of the connection)
Connection method: welding wire to board (by welding the connector is fixed on the circuit board to achieve the connection with the wire)
Electrical performance: including voltage rating, current rating, contact resistance, insulation resistance and other parameters, the specific value should be determined according to the product specification.
Physical size: includes dimensional information such as the height, width, and depth of the connector, as well as detailed parameters such as pin spacing and pin length.

IV. Application scenarios
Mainly used in computer motherboard, server motherboard, industrial control equipment, embedded system and other fields, as a key connection between the storage device and the motherboard.

V. Precautions
During use, ensure that the connector is correctly connected to the device to avoid signal transmission problems caused by poor contact.
Pay attention to the use of the connector environment, avoid the use of humid, high temperature or strong electromagnetic interference environment, to ensure the stability and reliability of data transmission.
During the welding process, follow the relevant welding process requirements to ensure the welding quality and avoid damage to the connector.
