Durable and SATA Data Connector for High-Speed Data Transfer in Modern Systems

 Product parameter

(Ambient temperature range:-20°TO +85°)

Rated Current:1.5A@40VAC
(Current and Voltage Specifications: 1.5A@40VAC)
Contact resistance:30mΩ (MAX)
Withstand Voltage: 500VAc/minute
Insulation Resistance:1000MQ(MIN)

Ni 50u" Min Plated over Terminal
Au GF Plated on Contact Area
Tin 80u"MIN Plated on Solder&Crimp Area
Nickel under tin regardless of control

Mating force:45N max;
Unmatingforce:15N Min for 1~5 cycles,6~50cycles 1ON min
Single pin retention force:0.8kgf min;

Product description

The SATA-C13F-A9S12A2-00LH is a high-performance, reliable, and versatile SATA cable designed to meet the demanding requirements of modern computing and data storage systems. This premium cable features a unique combination of advanced specifications and robust construction, making it the perfect solution for connecting SATA devices to your system with ease and confidence.

Key Features:

• SATA III Compatibility: Compliant with the latest SATA 6Gb/s (600MB/s) specification, the SATA-C13F-A9S12A2-00LH ensures maximum data transfer speeds for seamless performance in high-end applications.
• Locking Connector Design: Equipped with a secure locking mechanism, the cable's connectors provide a firm and stable connection to your SATA devices, minimizing the risk of accidental disconnections or signal loss.
• Durable Construction: Crafted from high-quality materials, including shielded wires and corrosion-resistant contacts, the SATA-C13F-A9S12A2-00LH is built to withstand the rigors of daily use and ensure long-lasting performance.
• Flexible Cable: The cable's flexible design allows for easy routing and installation in tight spaces, ensuring a clean and organized setup within your system.
• Universal Compatibility: Compatible with a wide range of SATA devices, including hard drives, solid-state drives (SSDs), and optical drives, the SATA-C13F-A9S12A2-00LH is an essential accessory for any modern computing or data storage setup.

Applications:

• Ideal for use in servers, workstations, and desktop computers requiring high-speed data transfer.
• Perfect for connecting SATA devices to motherboards, RAID controllers, and other SATA-enabled devices.
• Suitable for use in a variety of data storage solutions, including NAS (Network Attached Storage) systems and external hard drive enclosures.

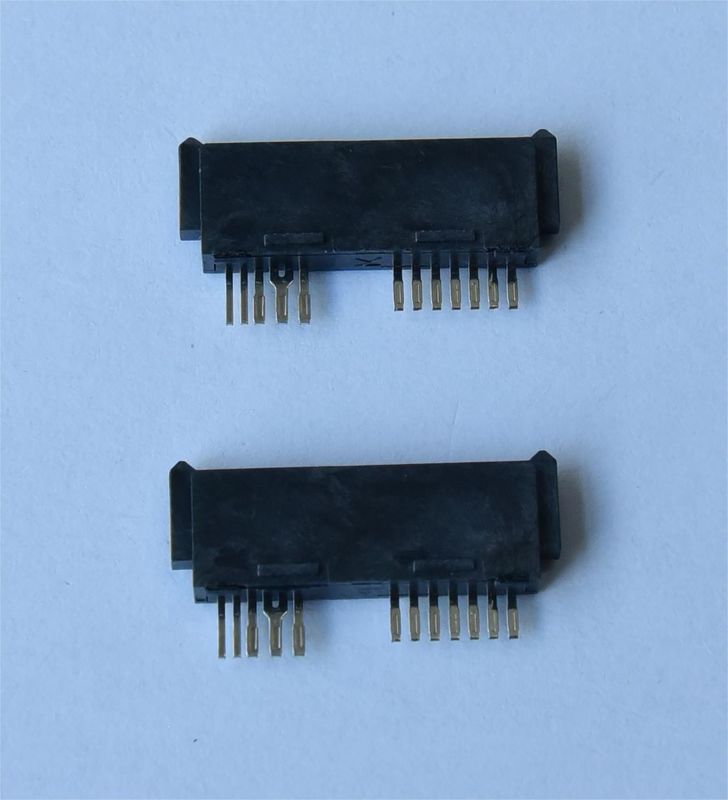

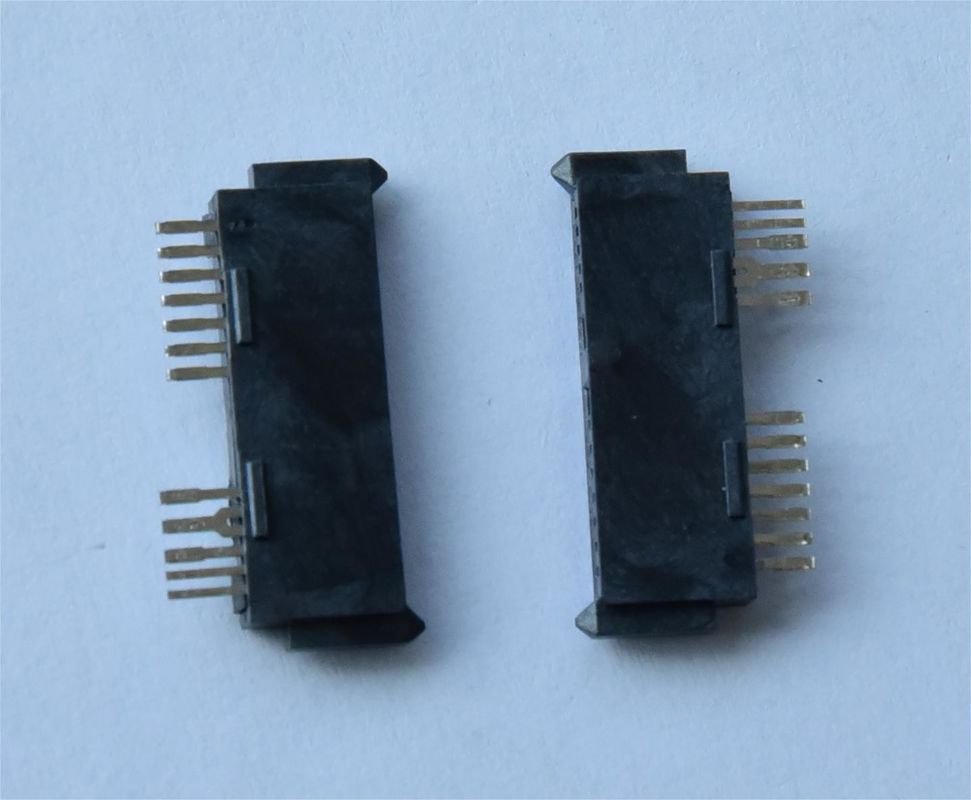

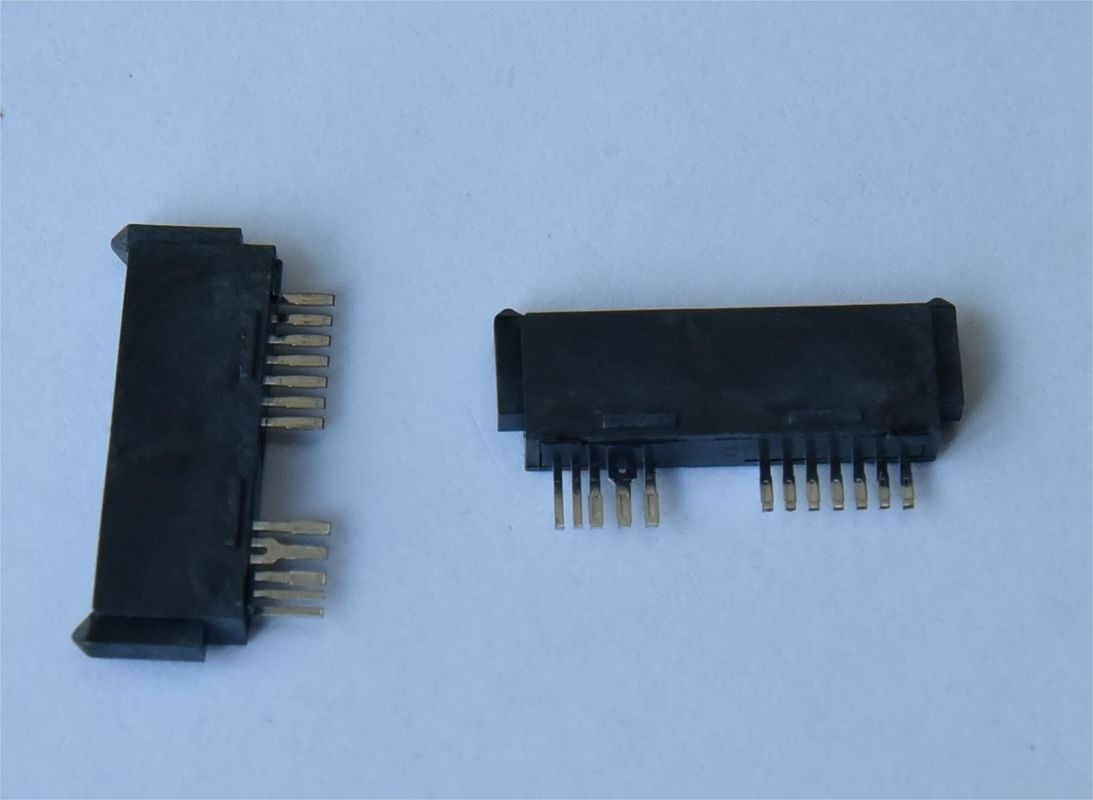

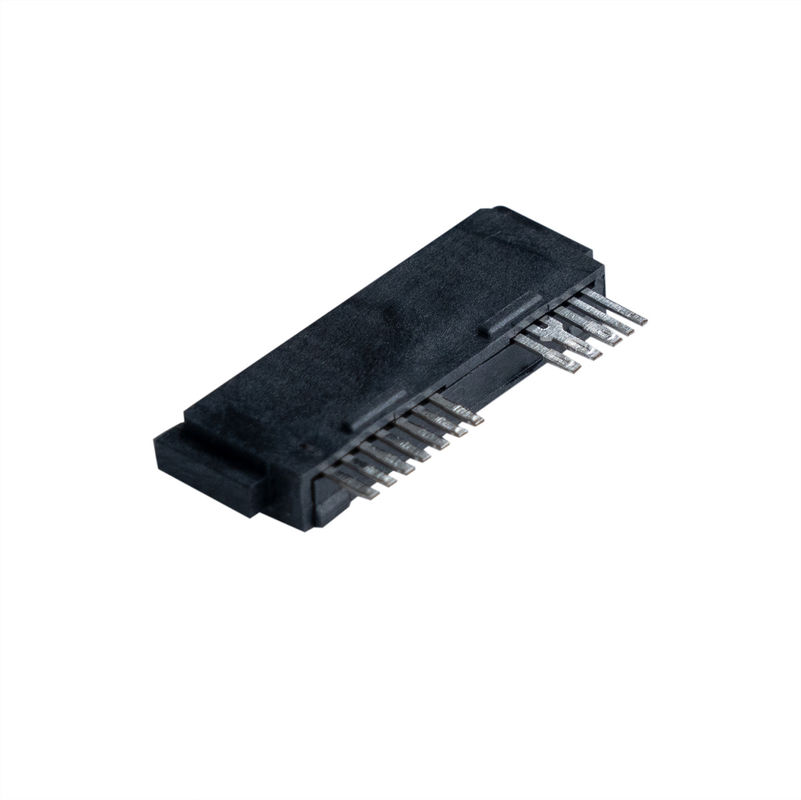

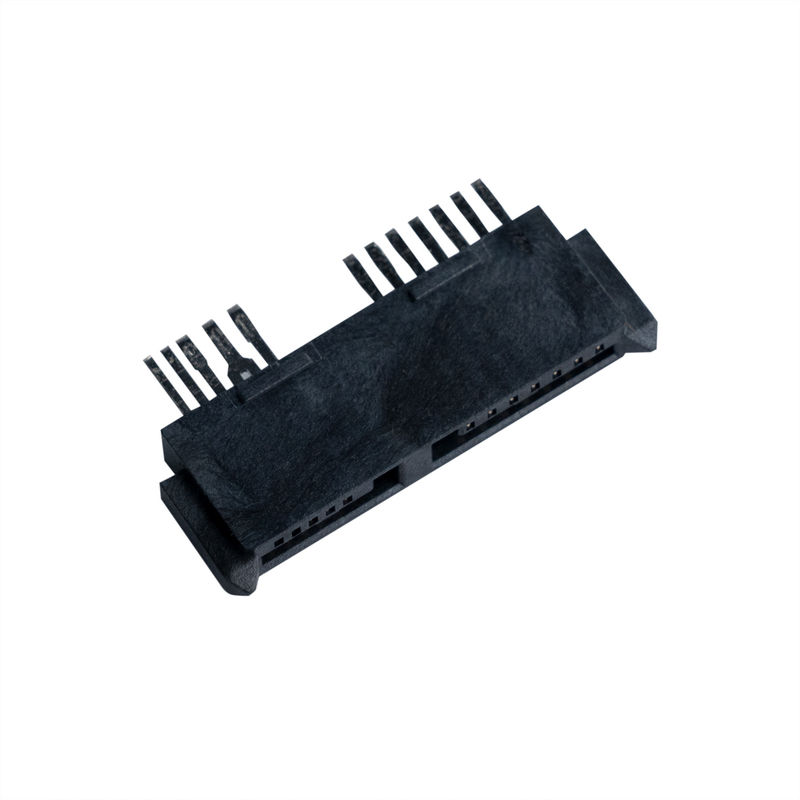

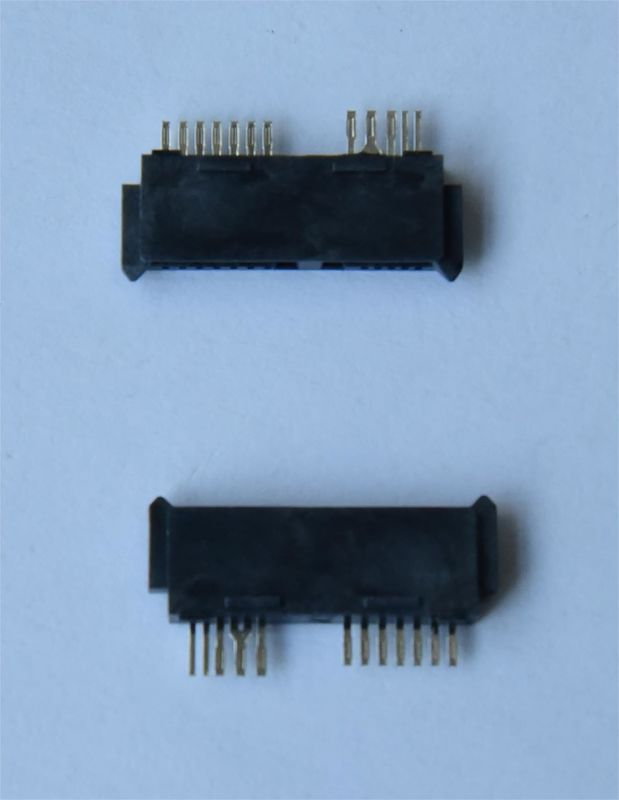

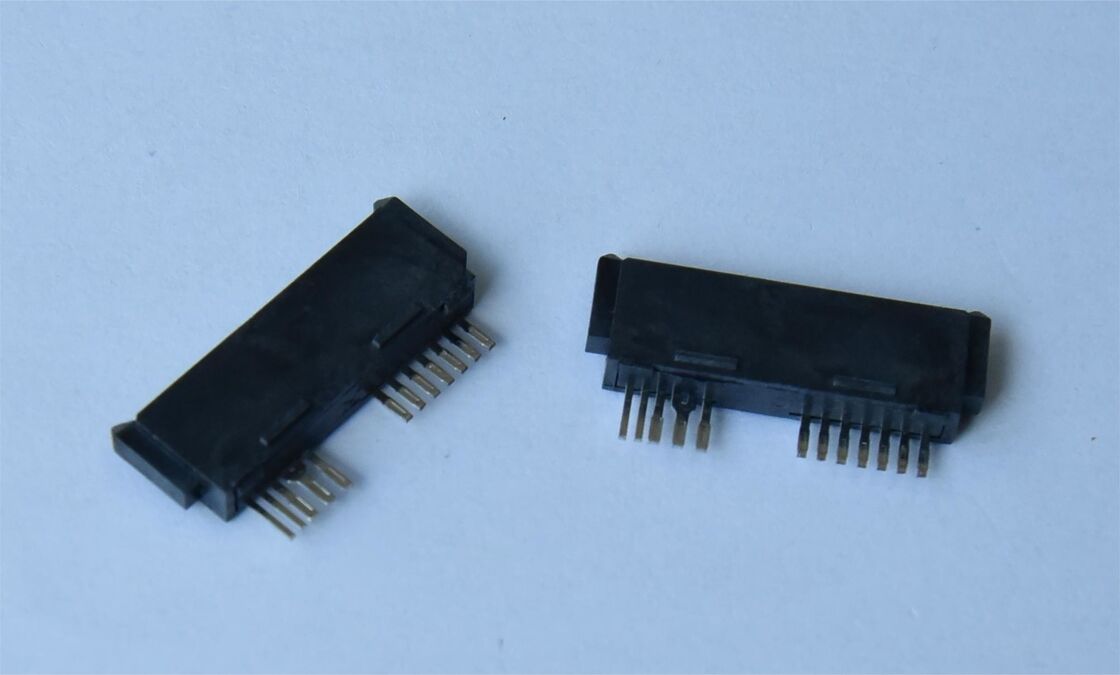

detailed photos
