High-speed Data Transmission with Serial Attached SCSI Connector

High-speed Data Transmission with Serial Attached SCSI Connector

Place of Origin:

China

Brand Name:

Shuangyi

Certification:

ISO9001,ISO14001

Model Number:

SAS-C29F-18N2A5-00LR

Contact Us
Request A Quote
Product Details
Connection Type:
Through-hole, Blind Mate
Shape:
Rectangular
Domain:
Cost-effective
Rated Voltage:
40VAC
Sample Status:
Provide Free
Interface Type:
Serial Attached SCSI (SAS)
Data Rate Min:
6 GB/s
Avaliable:
7Circuits
Rohs Compliant:
Yes
Pole:
29Pin
Cable Type:
Mini SAS HD
Pcba:
Rogers PBT 94V-0
Shielding:
Fully Shielded
Termination Style:
Solder
Max:
12 GB/s
Payment & Shipping Terms
Minimum Order Quantity
Negotiation
Price
Negotiation
Packaging Details
1.Custom polybag packing 2.Custom paper box packing 3.According to client's request
Delivery Time
According to clients' request
Payment Terms
L/C, T/T
Supply Ability
100000 Pieces Per Month
Product Description

Product parameter

Contact Resistance: 30mΩ Max
Withstand Voltage: No breakdown
Insulation Resistance: 1000M Min
Rating Voltage/Current: 1.5A@40VAC
MECHANICAL
Terminals and plastic retention: 0.8kgf Min
ENVIRONMENTAL Test
Temperature: -20°~ +85°
Salt Spray Test :24H
Terminal Plating: Ni 50u" Min Tin 80u"Min Au 15U"Min

Contact Resistance 30mΩ Max
Withstand Voltage No breakdown
Insulation Resistance 1000M Min
Temperature -20°~ +85°
Salt Spray Test 24H





Product description

Energy-saving technology
SAS connectors use advanced energy-saving technologies to reduce energy consumption and save operating costs while maintaining performance

Stable and durable
SAS connectors feature rugged housings and high-quality materials to ensure stability and durability in harsh environments.

Hot-swappable and blind-mate connections
SAS connectors support both hot-swappable and blind-mate connections, allowing you to add/remove drives without shutting down the system, making it easy to connect in confined spaces or inaccessible devices

High-speed, low-latency data transfer
SAS connectors support high-speed data transmission, which can meet the needs of high-end applications such as big data processing, cloud computing and artificial intelligence. At the same time, the low-latency feature ensures the real-time and accuracy of data in the transmission process, which improves the response speed and efficiency of the system

Wide range of compatibility
SAS connectors can seamlessly connect with a wide range of different brands and models of equipment, providing users with great convenience. Whether it is traditional servers and storage devices, or emerging cloud computing platforms and big data centers, SAS connectors can easily cope with them and achieve stable and efficient data transmission.

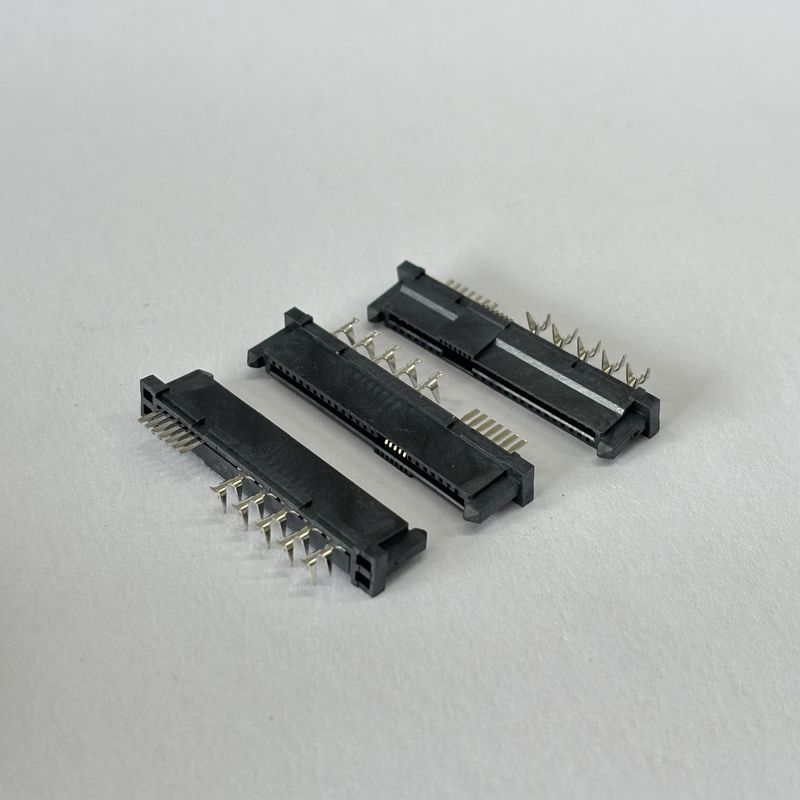

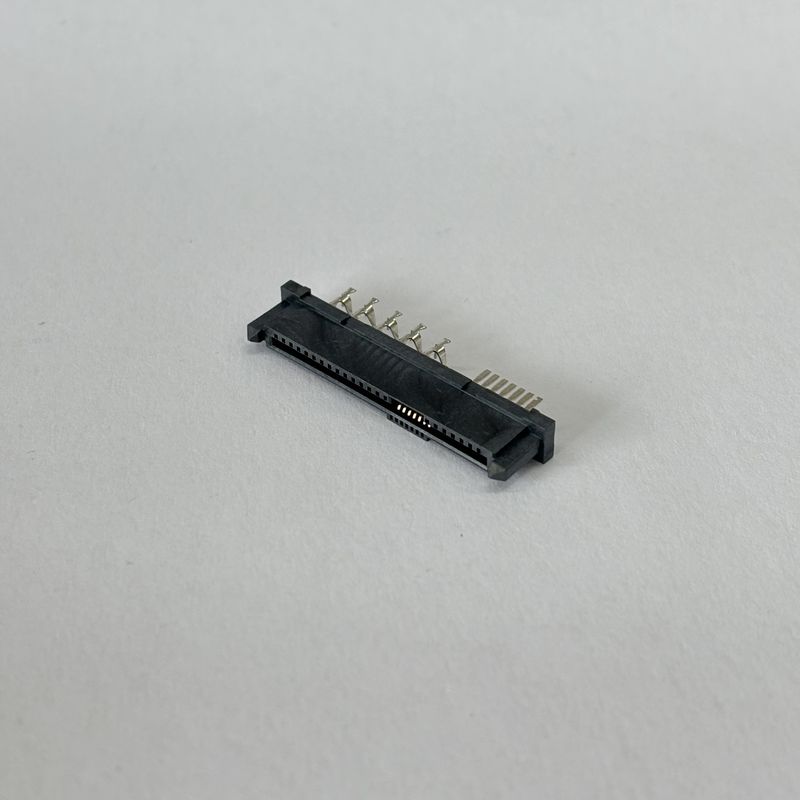

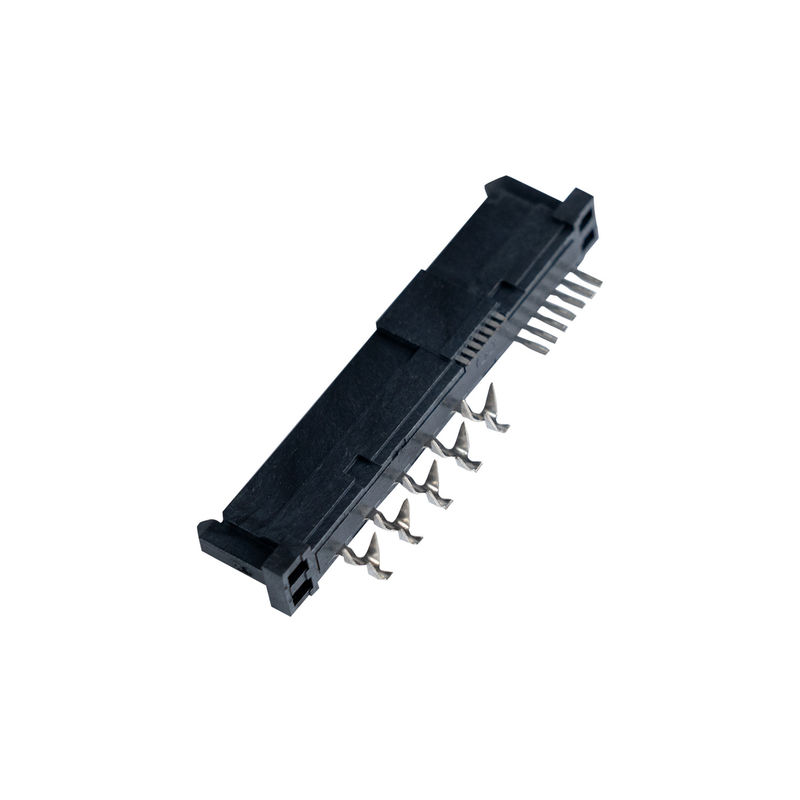

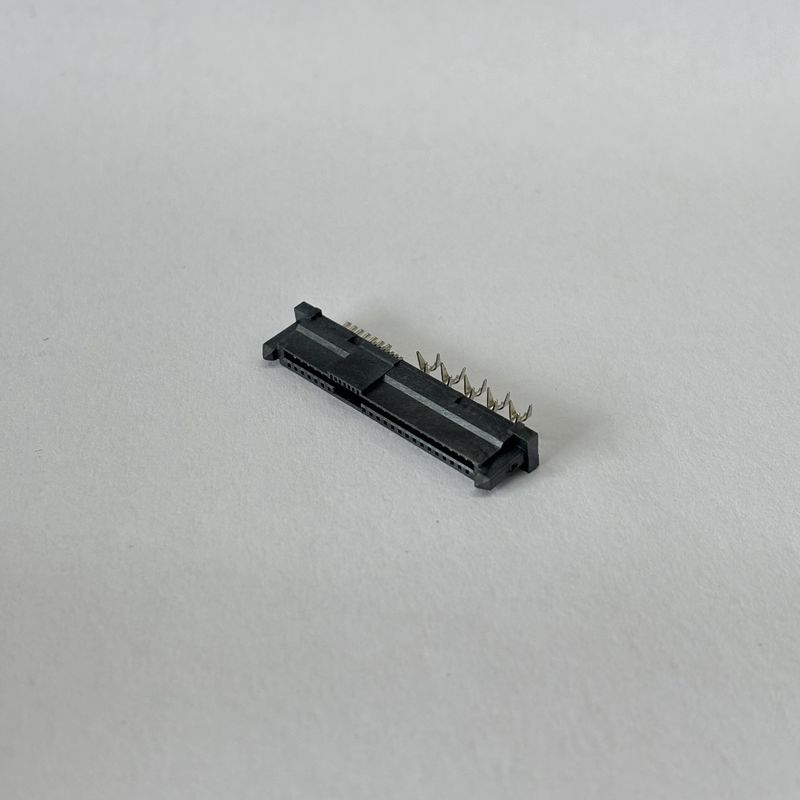

detailed photos

High-speed Data Transmission with Serial Attached SCSI Connector 0

High-speed Data Transmission with Serial Attached SCSI Connector 1High-speed Data Transmission with Serial Attached SCSI Connector 2High-speed Data Transmission with Serial Attached SCSI Connector 3High-speed Data Transmission with Serial Attached SCSI Connector 4
