| Item Weight: | 1.4 Ounces | Product Dimensions: | 8.7 X 4.6 X 0.4 Inches |
|---|---|---|---|
| Color: | Mini SAS 8643 To Mini SAS 8087 | Size: | 3.3 Feet |
| Wire: | 30AWG | RoHS: | Yes |
| High Light: | mini sas cable,serial attached scsi sas cable |
||

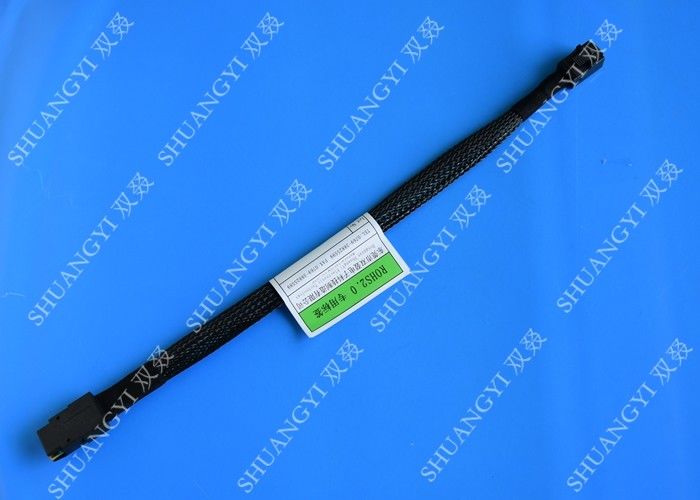

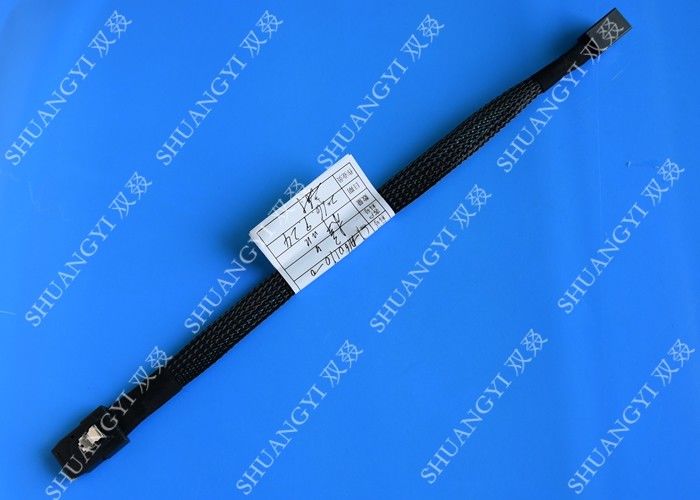

Internal HD Mini SAS SFF-8643 to Mini SAS 36Pin (SFF-8087) Connection Cable,
High Density (HD) MiniSAS SFF-8643 Internal cable assemblies are available for SAS 2.1, 6Gb/s and SAS 3.0, 12Gb/s specification.
SFF-8643 is the new connector uses less PCB real estate and allows higher port density for internal hosts and devices.
Hybrid versions of these new cables will allow for a smooth transition from 6Gb to 12Gb.
INTERNAL HD MINI SAS cable is specifically designed to connect a 12 Gbps host bus adapter or RAID controller with an SFF-8643 to a SAS backplane with a Mini-SAS SFF-8087 port
MULTI-LANE 8643 to 8087 CABLE with 4 channels can drive 4 devices or more with a SAS expander; Supports multiple lanes of high speed SAS and SATA traffic over a single cable
HYBRID HD SAS TO SAS cable provides for the migration from 6 Gbps to 12 Gbps storage devices; SAS and SATA storage compatible; Bi-directional cable supports host or target with 36 pin internal connectors
ROBUST DESIGN of internal Mini-SAS HD 8643 to 8087 cable combines lightweight cable with 30 AWG wire and a 36 pin internal SFF 8643 high density connector on one end and an internal 36 pin SFF 8087 connector with a stainless steel latch on the other end
DIY & PRO INSTALLERS appreciate a heavy duty but flexible cable when expanding storage needs; Mesh harness of internal Mini SAS cable is easy to route in tight spaces and provides sufficient length for internal cable management
Product Description:
Size: 3.3 Feet

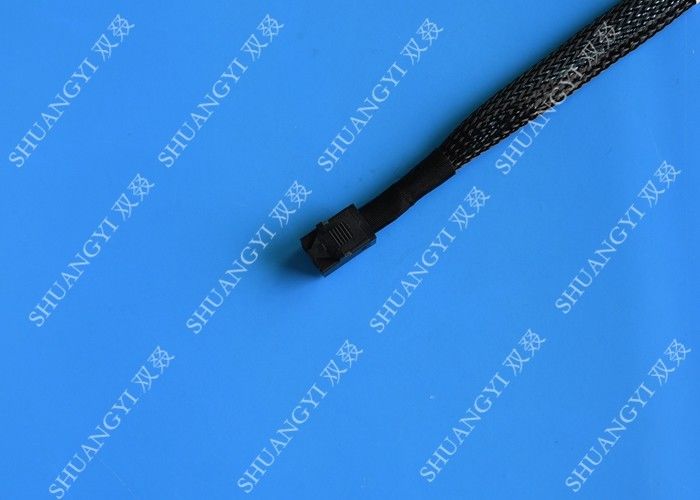

Internal Connector A: 1 x 36 pin HD Mini-SAS SFF-8643 male

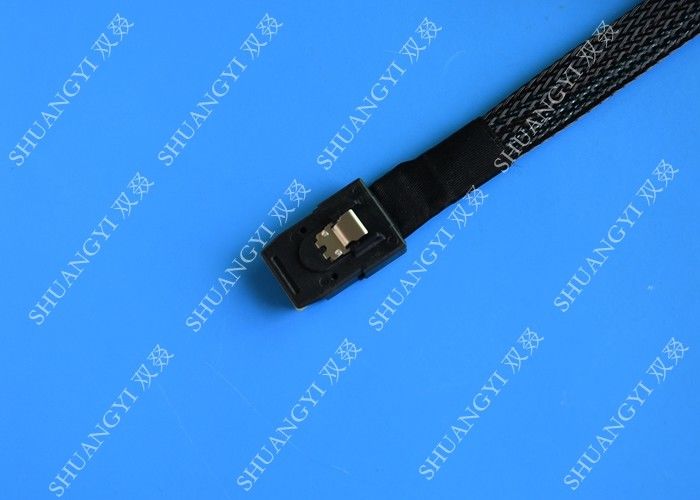

Internal Connector B: 1 x 36 pin Mini-SAS SFF-8087 male with latch
Cable: 30AWG
Cable Color: Black
Storage Server Solution:
The Internal HD Mini-SAS to Mini-SAS 8643 to 8087 Cable is an essential component for migrating from a 6 Gbps to 12 Gbps storage area network. The combination of a sturdy cable in a woven mesh sheath with latching connectors provides a secure connection and reliable performance.
Multi-Lane Performance with a Lifetime Warranty
Maximize the capacity of your SAS 3.0 host bus adapter with this sturdy but flexible cable with sidebands that is built to withstand 24/7 use. A lifetime warranty is included with this HD Mini SAS cable for peace of mind when purchasing.
