Internal HD Mini SAS Cable (SFF-8643) to 4 SATA Forward Breakout Cable 3.3 Feet / 1M

China Internal HD Mini SAS Cable (SFF-8643) to 4 SATA Forward Breakout Cable 3.3 Feet / 1M supplier
Internal HD Mini SAS Cable (SFF-8643) to 4 SATA Forward Breakout Cable 3.3 Feet / 1M supplier Internal HD Mini SAS Cable (SFF-8643) to 4 SATA Forward Breakout Cable 3.3 Feet / 1M supplier Internal HD Mini SAS Cable (SFF-8643) to 4 SATA Forward Breakout Cable 3.3 Feet / 1M supplier

Large Image :  Internal HD Mini SAS Cable (SFF-8643) to 4 SATA Forward Breakout Cable 3.3 Feet / 1M

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: SHUANG YI
Certification: ISO9001/ISO14001/SGS/UL/RoHS/Reach
Model Number: SFF8643 TO

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: 1.Custom polybag packing 2.Custom paper box packing 3.According to client's request
Delivery Time: 7~10 Work days
Payment Terms: T/T, L/C
Supply Ability: 100000 Pieces Per Month
Contact Now
Detailed Product Description
Side 1: Mini SAS (SFF-8643) Male With Latch Side 2: Angle 4x SATA Female Port
Cable Color: Black+Blue Cable Length: 500mm/Customized(other Length Can Enquiry Seller)
Target: Drive Environment: RoHS
High Light:

mini sas cable

,

serial attached scsi sas cable

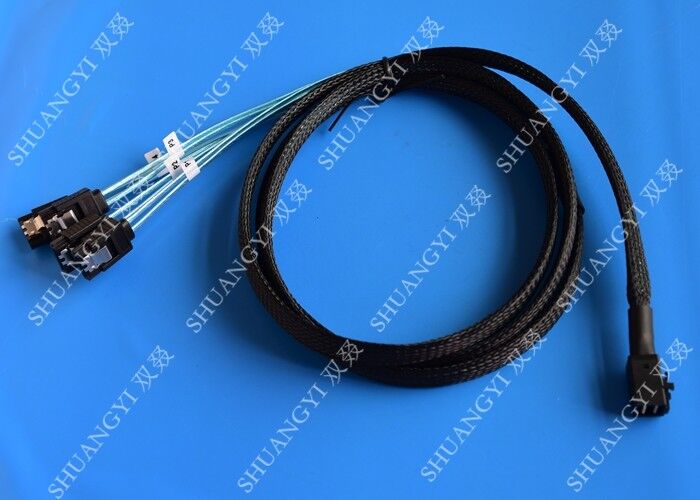

Internal HD Mini SAS (SFF-8643) to 4 SATA Forward Breakout Cable 3.3 Feet / 1M





Product Description:

INTERNAL HD MINI SAS cable is specifically designed to connect a RAID controller with 4 SATA connectors to a backplane with a 12 Gbps internal mini HD SAS SFF-8643 port. Reverse Mini SAS HD to SATA cable provides reliable internal connectivity between a SATA RAID controller card and direct attached storage devices through a backplane.



REVERSE FANOUT CABLE has an internal SFF-8643 (TARGET) HD Mini-SAS 36 pin connector and 4 x SATA 7 pin (HOST) connectors

Support SAS (up to 6Gb/s) and SATA (12Gb/s)

SFF-8643 TO 4 X SATA IN 1M / 3.3 FT ( REVERSE )



INTERNAL HD MINI SAS cable is specifically designed to connect a 12 Gbps host bus adapter or RAID controller with SFF-8643 to 4 discrete SATA drives; Mini SAS HD to SATA adapter cable provides reliable internal connectivity between a high density RAID controller card and direct attached storage devices with a SATA plug



HYBRID HIGH DENSITY SAS TO SATA with a 36 pin SFF 8643 connector and 4 x 7 pin SATA connectors provides both 3 Gbps and 6 Gbps compatibility while migrating to a to 12 Gbps storage area network system



FORWARD FAN-OUT CABLE has an internal SFF-8643 (HOST) HD Mini-SAS 36 pin connector and 4 x SATA 7 pin (TARGET) drive connectors; Four discrete SATA fanout drive cables are of equal length with stainless steel latches to provide a secure connection



MULTI-LANE 8643 to SATA CABLE with 4 channels can drive 4 SATA drives; Supports multiple lanes of high speed SATA traffic over a single cable; SFF 8643 compatible with the Adaptec RAID 71605 / 7895 Storage Controllers



FLEXIBLE DESIGN of HD mSAS breakout cable includes acetate cloth tape over slim ribbon cables for strain relief to protect cables without rigidity; Woven mesh sheath covers half of the cable for easy routing; P1 to P4 markers provide easy ID after installation; Low profile SATA connectors have easy-grip treads with stainless steel latches to prevent accidental disconnection and reduce vibration



High Density Storage Migration Solution:
The Internal HD Mini-SAS 8643 to 4 x SATA Cable is an essential component for migrating from a 6 Gbps to 12 Gbps storage area network. It provides multiple lanes of high speed SATA traffic through a single cable in a sturdy but flexible cable that is built to withstand 24/7 use.

Robust Construction :
The combination of a slim ribbon cable design in a woven mesh sheath with locking connector latches provides a professional installation that minimizes the impact on airflow in a computer case.

Important Notes:
Pair with a 4 port SATA to Power Splitter Cable to provide power to the drives
Data transfer speed is determined by the capabilities of your SAS controller and SATA drives

Cable Specifications:

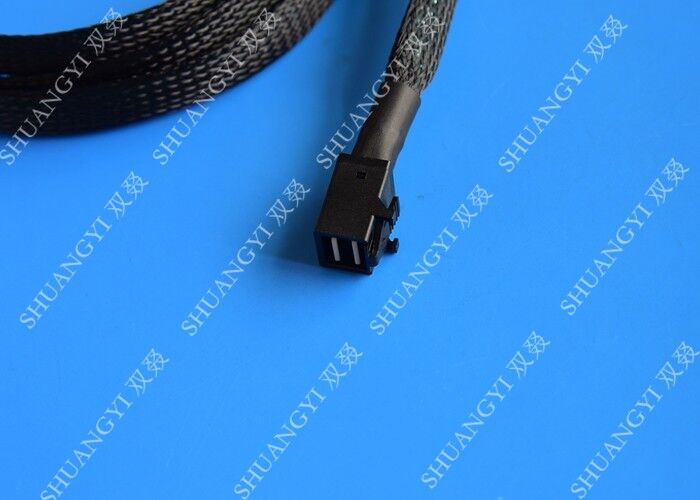

Host/Controller Connection: 1 x 36 pin HD Mini-SAS SFF-8643 - male with latch

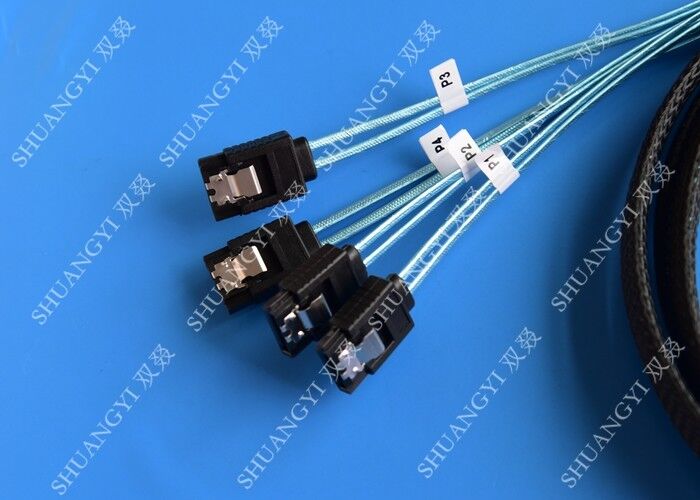

SATA Drive Connections: 4 x 7 pin SATA receptacle – female with latch
Wire - 30 AWG Style 207044 flat ribbon cable
Compatible with 2.5", 3.5" SATA I, II, III hard drives
RoHS compliant
