Product Details:
Payment & Shipping Terms:
|
| Application: | Computer, Server, Power, Hard Disk | Length: | 500mm |
|---|---|---|---|
| Cable Color: | Blue | Conductor: | Tinned Cooper With 30awg |
| Feet: | 1.6 | Angle: | 90 Degree |
| High Light: | serial attached scsi sas cable,sas hard drive cable |
||
Product Description:

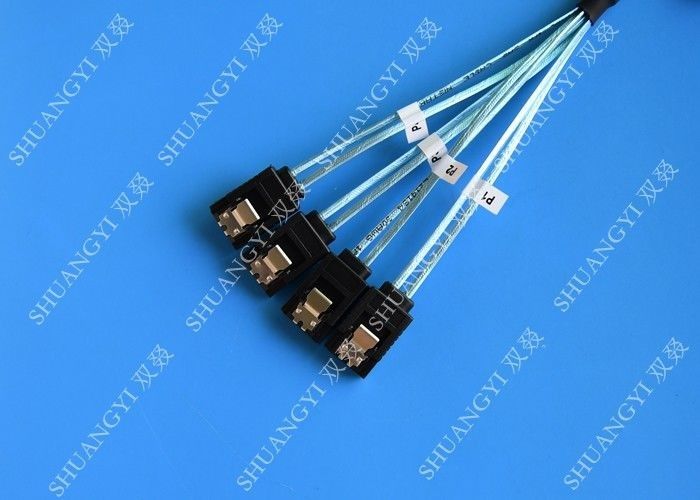

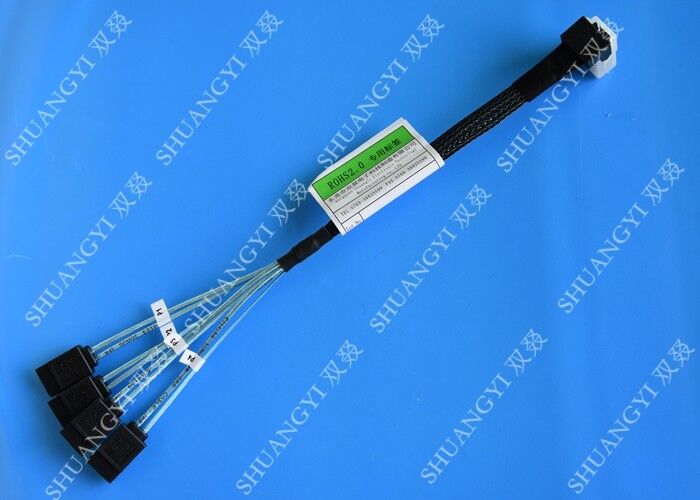

Mini SAS to 4 SATA cable, uses to connect your Mini SAS controller to SATA backplane.
Mini SAS (SFF-8087) is the Controller
4 Sata is the Backplane
Controller (Mini SAS 4i SFF-8087) to 4x 7Pin SATA storage
SFF-8087 90 Degree Angle connector to 4 X SATA mini SAS fan out cable eliminates accidental disconnections with its latching connectors and offers 6Gb/s bandwidth. SFF-8087 90 Degree to 4 X SATA mini SAS fan out cable is designed to connect 4 hard disk drives to the existing port of the system. The cable helps to easily expand the storage needs while delivering ultra-fast error-free data transfers. Ability to connect multiple SATA hard disk drives to a single SAS port to easily expand your storage needs while delivering ultrafast error free data transfers

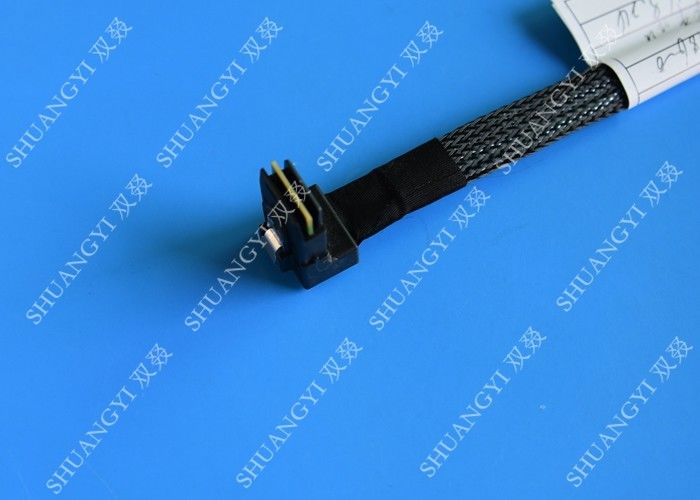

90 Degree angled connector, easy for plug, even in hard to reach areas and narrow spaces
Mini SAS 36 (SFF-8087) Male Connect to the Controller, 4x SATA Connect to the backplane or HDD
Mini SAS 36 (SFF-8087) Male is Host, 4 x SATA female is target
Serial Attached SCSI (SAS) is a high-speed data storage interface designed for high- throughput and fast data access
Cable Length 0.5M, Approximately 1.6 feet
Specifications:
Side 1: Angled Mini SAS 36Pin (SFF-8087) Male with Latch
Side 2: 4x SATA 7Pin female with latch
Cable: 30AWG
Cable Length: 1 Meters
Cable Color: Black+Blue
Micro SATA Cables PN # SFF-797-.75M
