Product Details:
Payment & Shipping Terms:
|
| Connector: | USB Type C | Switch:: | Without Switch |
|---|---|---|---|
| Material: | PVC+ABS+Aluminum | Ports: | 2-4 |
| Interface Type: | USB 3.1 | Color: | Gray/Customize |
| High Light: | usb waterproof connector,waterproof usb connector |
||
Product Description:

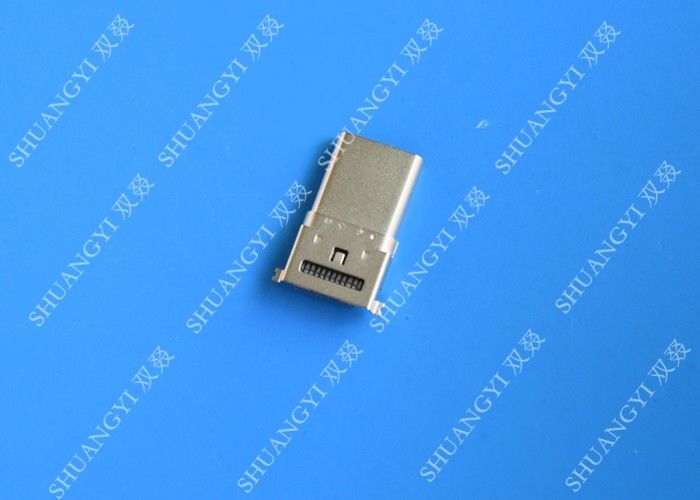

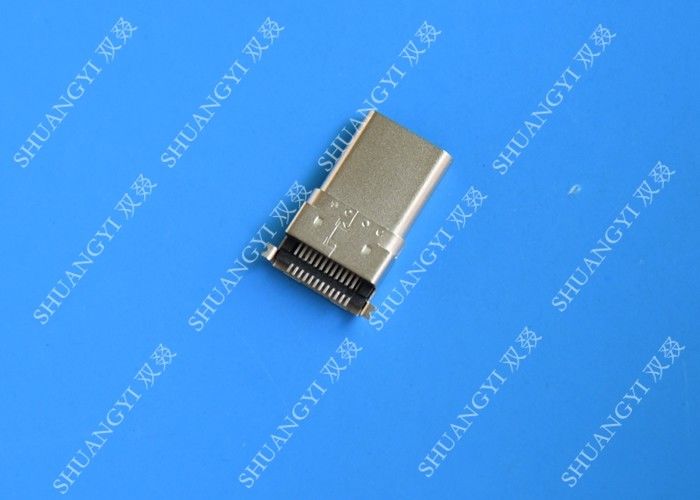

24pin Type C Male connector USB3.1 Full-featured connector
Application:
Power for smart phone & Power Bank & Power Adaptor & SSD FLASH
HUAWEI P9, P9 puls, V8, XIAOMI5 , LE2 ,PRO6 OF MEIZU ,ZUK2,VIVO X5 PRO etc.
Specification:
1. Materials:
Shell: Stainless Steel T=0.15mm ± 0.01mm
Spring: Stainless Steel T=0.10 ± 0.01mm
Housing: Thermoplastic
Conntact: High-conductivity copper alloys T=0.20 ± 0.01mm
2. Plating:
Connect: 80u" min. Nickel underplating Overall
Plated cold 30u" min. on contact area
or reference part no. code
plated Au 1u" min. on solder area
Shell: plated Nickel
3. Electrical Characteristics:
Low level contact resistance: 40mΩ max.
Insulation resistance: 100MΩ min.
Dielectric withstanding voltage :100V AC
Contact Current Rating: 5A Max.
4. Mechanical Characteristics:
Insertion Forec: 5~20N
Extractiong Forec: 8~20N
Durability :10000 Cycles
5. IR Reflow Condition Peak Temperature: 260 ºC - 10s
