Product Details:
Payment & Shipping Terms:
|
| Material: | ABS/PBT/PA66/LCP | Nsulation Resistance: | 1000MOhm |
|---|---|---|---|
| Plating: | Tin 50u "over 100u" Nickel | Pitch: | 1.0/1.27/2.0/2.54mm |
| Rated Voltage: | 500V | Rated Current: | 1.0A AC/DC |
| High Light: | external sata connector,esata usb connector |
||
Product Description:
|
Description |

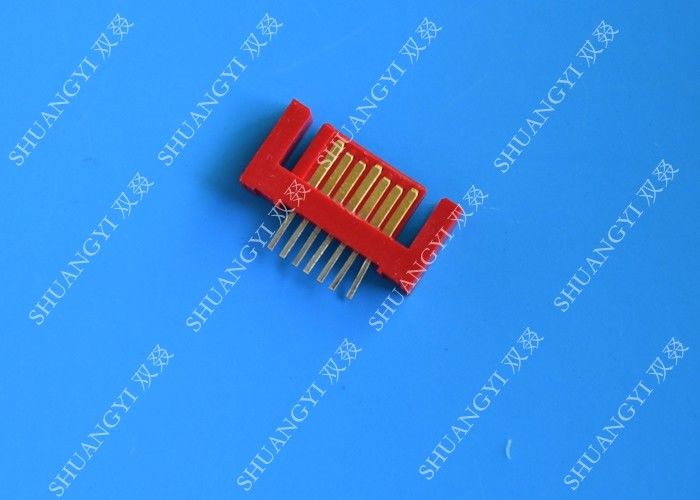

7pin smt type Female Header Serial ATA / ESATA / SATA connector |
|||||
|
Standard Dimension |
PA |
PB |
W |
Length |
|
|
|
Pin ways |
7P |
|||||
|
Alternative Plating |
G/F |
Tin |
Sel. Gold/Tin |
|
|
|
|
GO |
SN |
S0 |
|
|
|
|
|
Packing way |
PE Bag /Tube/ Tray/ Plastic box/ Tape&Reel Packing. |
|||||
|
MOQ |
500PCS |
|||||
|
Delivery time |
1-2weeks after confirm order |
|||||
|
Engineering Specifications |
Rated Current:1.0AMP |
|||||
|
Contact Resistance: 20mΩ Max |
||||||
|
Withstand Voltage:1000V AC/DC |
||||||
|
Insulation Resistance:1000MΩ Min |
||||||
|
Operation Temperature: -40°c to +105°c |
||||||
|
Contact Material : Phosphor bronze |
||||||
|
Contact Plating: Au Over Ni |
||||||
|
Insulator Material :Polyester (UL94V-0) |
||||||
|
Standard: LCP |
||||||
|
Max.Processing Temp: 230°c for 30-60 Seconds / (260°c for 10 Seconds) |
||||||
