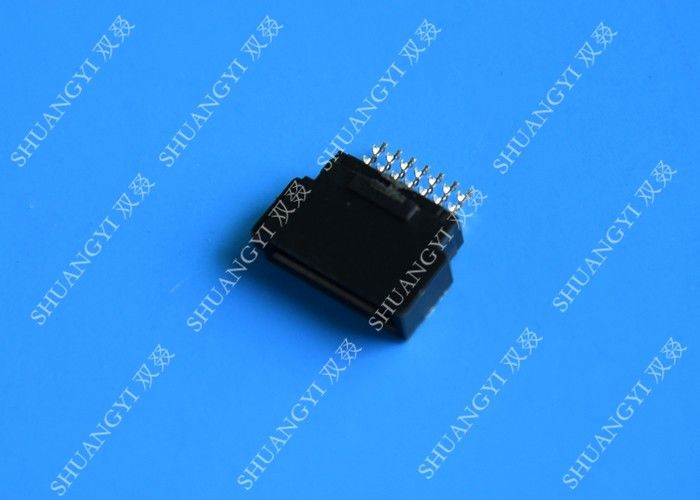

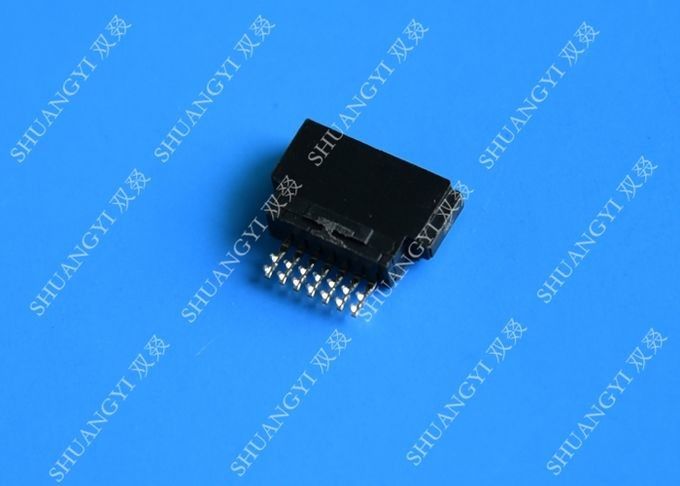

7 Pin Micro ESATA Power Connector High Speed With Copper Alloy Terminal

China 7 Pin Micro ESATA Power Connector High Speed With Copper Alloy Terminal supplier
7 Pin Micro ESATA Power Connector High Speed With Copper Alloy Terminal supplier 7 Pin Micro ESATA Power Connector High Speed With Copper Alloy Terminal supplier

Large Image :  7 Pin Micro ESATA Power Connector High Speed With Copper Alloy Terminal

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: SHUANG YI
Certification: ISO9001/SGS/UL/RoHS/Reach
Model Number: ESATA Connector

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: 1.Polybay 2.1000pcs of a tray 3.Or accroding to your request.
Delivery Time: 7~10 Work days
Payment Terms: T/T, L/C
Supply Ability: 10000 Pieces Per Day
Detailed Product Description
Type: ESATA Female Connector Color: Black
Application: Laptop, Computer,PCB, PC, Server, Set-Top-Box Pin Number: 7Pin
Voltage: 125Vac Gender: Female
Current: 1.5 Amps PCB Angle: Vertical(90 Degree)
High Light:

esata usb connector

,

esata power connector

7 Pin Micro ESATA Power Connector High Speed With Copper Alloy Terminal





Specification:

Poles: 7Pin

Available: 7Circuits

Pitch Between Poles: 1.27mm

Temperature Range: -20°C--- +85°C

Applicable Wire Range: AWG #18-#30



Electrical:

1. Current Rating: 1.5 Amps

2. Voltage Rating: 125vac

3. Insulation Resistance: 1000 MΩmin

4. Contact Resistance: 30 MΩmax

5. Withstanding Voltage: AC 1000V RMS 50Hz or 60Hz 1 min



Mechanical:

1. Insertion Force: 2 CONTACTS....350g 4 CONTACTS….500g

6 CONTACTS….750g 8 CONTACTS….900g

10 CONTACTS....1050g

2. Retention Strength: 7.7KG.F min between jack and plug

3. Durability: 750 mating cycles min



Material:

1. Housing: ABS RESIN(UL94V-0) PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) LCP(UL94V-0)

2. Insulator: LCP/PBT G/F UL 94V-0

3. Terminal: Copper Alloy

4. Ni 50u" Min Plated over Terminal

5. Au Plated on Contact Area

6. Tin 80u" Min Plated on Solder Area

7. Contact Wire: Diameter 0.45mm phosphor bronze gold plating over nickel 0.35mm thickness phosphor bronze alloy selective gold plating over nickel

8. Shield: 0.20~0.25mm thickness brass with tin plated

9. Shell: Copper Alloy

10. Tin 80u''Min Plated on solder&crimp Area

11. Ni 40u" Plated over shell

12. Gold Plating: 1u" , 3u" , 6u" , 15u" , 30u" , 50u" .

13. RoHS peak wave solder: RoHS-5 peak wave solder temperature rating 235℃±5℃

14. RoHS peak wave solder: RoHS-6 peak wave solder temperature rating 260℃±5℃



Operating And Storage Temperature:

1. Operating Temperature: -40℃ to 85℃

2. Storage Temperature: -40℃ to 85℃



Application:

1. Networking Products: NIC, HUB, Switch, Router, Bridge,

2. Work Station: PC/System, Printer, Server, NB, Iacable moden, XDSL Application, Set-Top-Box.

3. Products are widely used in computers, laptops, mobile phones, communications, medical and electrical equipments, support power .
