SFF 8087 To SATA Serial Attached SCSI Cable 500mm 30 AWG 28 Pin For Server

China SFF 8087 To SATA Serial Attached SCSI Cable 500mm 30 AWG 28 Pin For Server supplier
SFF 8087 To SATA Serial Attached SCSI Cable 500mm 30 AWG 28 Pin For Server supplier SFF 8087 To SATA Serial Attached SCSI Cable 500mm 30 AWG 28 Pin For Server supplier SFF 8087 To SATA Serial Attached SCSI Cable 500mm 30 AWG 28 Pin For Server supplier SFF 8087 To SATA Serial Attached SCSI Cable 500mm 30 AWG 28 Pin For Server supplier

Large Image :  SFF 8087 To SATA Serial Attached SCSI Cable 500mm 30 AWG 28 Pin For Server

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: SHUANG YI
Certification: ISO9001/ISO14001/SGS/UL/RoHS/Reach
Model Number: SFF8087 TO SATA (SY-A160080-0)

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: 1.Custom polybag packing 2.Custom paper box packing 3.According to client's request
Delivery Time: 10~15 Work days
Payment Terms: T/T, L/C
Supply Ability: 100000 Pieces Per Month
Detailed Product Description
Color: Black PVC Jacket+Blue Aluminum Foil Cable Length: 500mm/Customized(other Length Can Enquiry Seller)
Conductor: Tinned Cooper With 30awg Connect Type: Forward Pinout/Forward Breakout
Connection A Type: 36-Pin SFF-8087 Male Mini-SAS Connection B Type: 4x 7-Pin Female SATA Right Angle
High Light:

mini sas cable

,

sas hard drive cable

SFF 8087 To SATA Serial Attached SCSI Cable 500mm 30 AWG 28 Pin For Server



Mini SAS HD Introduction:

March 2012 began a new Mini SAS HD R & D, and dual-port density and low-key as a PCIe card support 6 and 12Gbps SAS applications. The new products, including a connector / card structure and direct-attach copper cables with SAS 2.1 standard and supports the latest SAS protocol for high-speed data transmission in a storage area network (san), data center, switching applications procedures. Mini SAS HD interconnect is fully compatible with 2.1 and SFF SAS - 8644 industry standards.



Mini SAS HD direct-attach cables, can provide 4 x (4 channels) or 8 x (8 Channel) cable plug configurations have been developed for the easy wire routing. Wire design combines brand cable outlet 4 pairs double TurboTwin telegraph cable connector backshells, for greater flexibility and tighter bend radius, the wire can be 4 pair cable. The two most shielded wire package aluminum foil and copper braid letter maximize signal integrity and reduce EMI radiation.



In addition, each Mini SAS HD cable incorporates an industry-compliant eepm signature, allows the host to recognize the cable and auto-configuration system settings to optimize the transmission of data signals. One of the key mechanical properties Mini SAS HD connector cable plug is an enhanced pull-to-release hooks, spring hooks at La reduces the insertion force to increase their retention force on the plug with safety and stability. Mini SAS HD cable must have three sizes (26, 28 and 30 AWG) and a length from 0.5 to 7M.



Product Description:

0.5m 30AWG Internal Mini SAS 36pin (SFF-8087) Male With Latch  to SATA 7pin Female (x4) Forward Breakout Cable - Black



Serial Attached SCSI (SAS) is a high-speed data storage interface designed for high-throughput and fast data access. Intended primarily for data storage centers, the SAS interface is backwards compatible with SATA. This allows the user to mix more expensive, lower-capacity SAS drives for applications that require faster data access and higher reliability, with lower-cost, higher-capacity SATA drives for applications with lower access speed requirements. Vision carries a full line of quality SAS cables with connectors for every possible application, both internal and external.

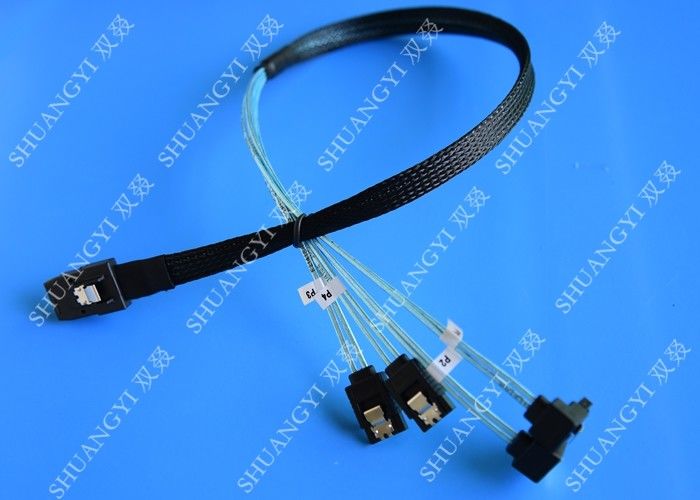

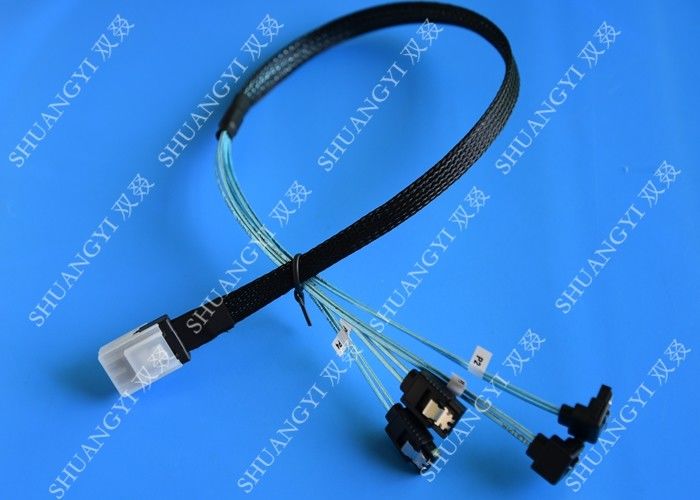

This 1/2 meter long cable uses 30 AWG wires and is intended for internal use. It has a single 36-pin SFF-8087 male Mini-SAS plug with locking latch on one end and has four 7-pin SATA female plugs on the other, allowing you to connect four SATA drives to an SAS controller. This is a Forward Breakout cable, meaning that it is intended to connect to a host/controller on the SAS end and to drives on the SATA end.



Specifications:

Application

Computer, Server

Wire Size

30 AWG

Color

Black PVC Jacket+Blue Aluminum Foil

Cable Length

500mm/0.5M/Customized(other length can enquiry seller)

Conductor

Tinned Cooper with 30awg

Connect Type

Forward pinout/Forward Breakout

Connection A Type

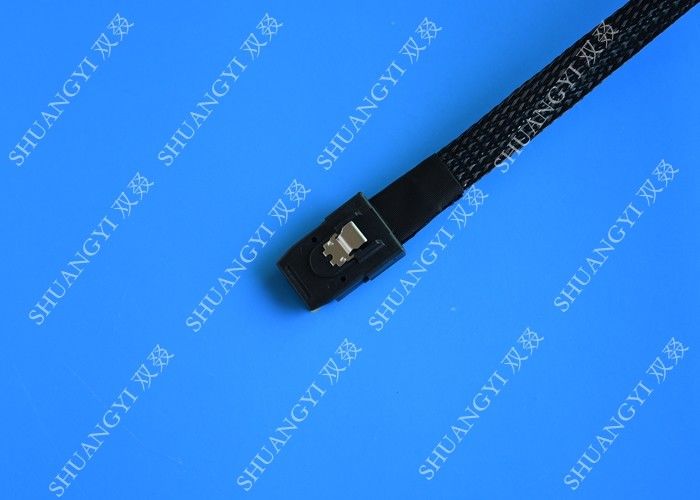

36-Pin SFF-8087 Male Mini-SAS

Connection B Type

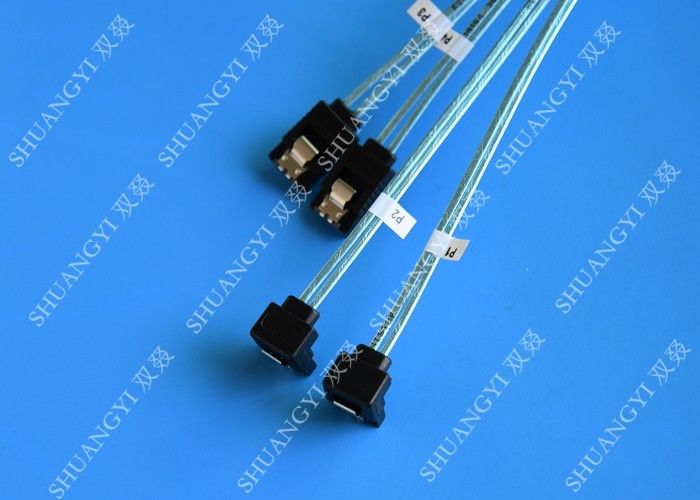

4x 7-Pin Female SATA Right Angle

SAS Connector Type

36P Internal Environment



Advantages:

1.  Fully integrated press-fit design of the container, provides a step placement PCB.

2.  Multi-port function added to allow or 4 x 8 x cable is mated 1-by-2 or 1-by-4 integrated connector.

3.  Integrated container design can be integrated into the radiator, allowing hot solutions long-reach, 4.

4. Passive - and active-copper cable options available, the ability to extend the reach of copper wire and active.

5. 4 x 8 x backshell options and more flexible cable options.

6. Highest-density AOC design, almost double the current density QSFP + AOCs, allows you to choose to use more ports.

7. Cable is in line with SAS-3 (12 gbp s) (system and optical-mode capability), InfiniBand * (10 gbp s), Ethernet (10 gbp s) and other agreements. Meet the next generation as well as many existing industry standards.
