USB 2.0 A Male USB Charging Connector , Plug Jack Mounting Solder 4 Pin PCB Connector

China USB 2.0 A Male USB Charging Connector , Plug Jack Mounting Solder 4 Pin PCB Connector supplier
USB 2.0 A Male USB Charging Connector , Plug Jack Mounting Solder 4 Pin PCB Connector supplier USB 2.0 A Male USB Charging Connector , Plug Jack Mounting Solder 4 Pin PCB Connector supplier USB 2.0 A Male USB Charging Connector , Plug Jack Mounting Solder 4 Pin PCB Connector supplier USB 2.0 A Male USB Charging Connector , Plug Jack Mounting Solder 4 Pin PCB Connector supplier

Large Image :  USB 2.0 A Male USB Charging Connector , Plug Jack Mounting Solder 4 Pin PCB Connector

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: SHUANG YI
Certification: ISO9001/SGS/UL/RoHS/Reach
Model Number: USB2.0

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: 1.Reel Packing 2.Custom Box Packing 3.According To Client's Request
Delivery Time: 7~10 Work Days
Payment Terms: T/T, L/C
Supply Ability: 100000 Piece/Pieces Per Month
Contact Now
Detailed Product Description
Application: PCB, PC System, Printer, Server Contact Platin: 1'-50u'
Material: Phosphor Bronze/ABS/PBT/PA66/LCP Gender: Female
High Light:

usb connector pins

,

usb port connector

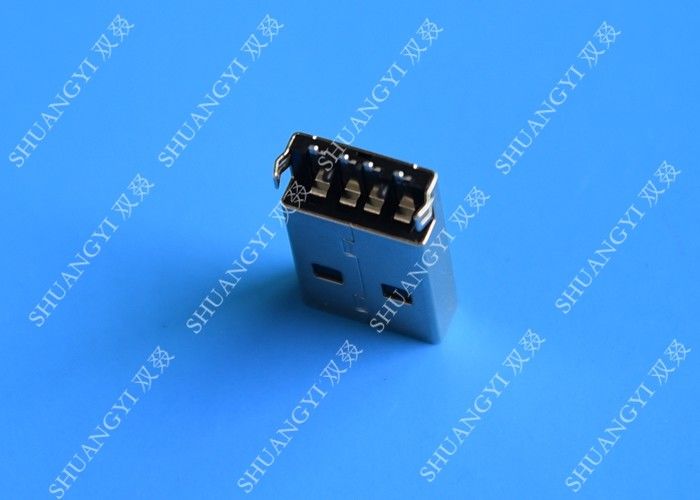

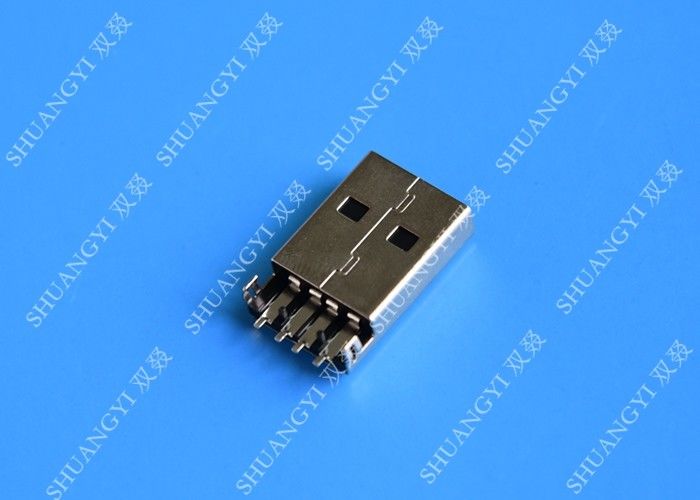

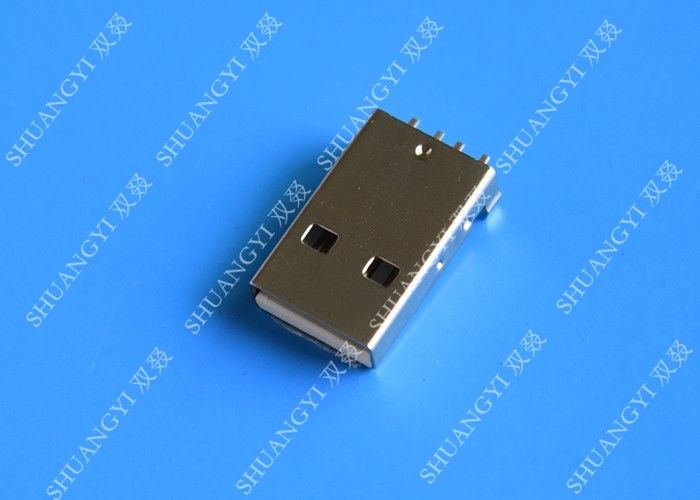

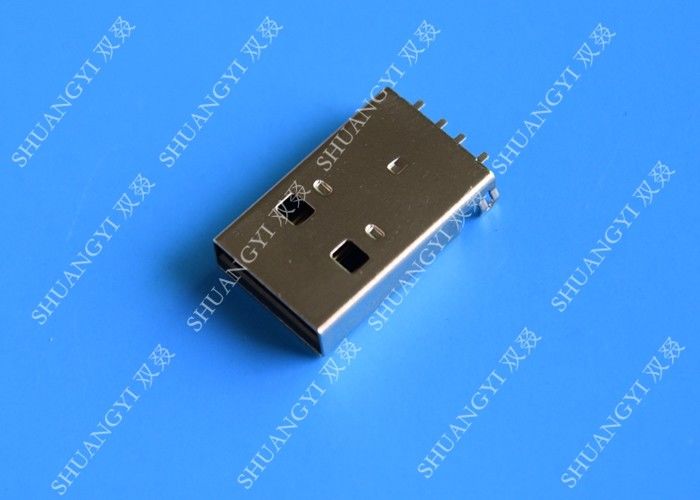

USB 2.0 A Male USB Charging Connector , Plug Jack Mounting Solder 4 Pin PCB Connector





Product Name : USB2.0 A Type Female Plug;Type : Solder Type

Dimension : 2 x 1.2 x 0.45cm/ 0.8" x 0.5" x 0.18"(L*W*H);Material : Metal, Electric Parts

Main Color : Silver Tone, Black

Weight : 20g

Package Content : 10 x USB2.0 A Type Female Plug Connector



Product Description:

This USB A Type Female plug connector can be used very widely.

Good replacement for the old and damaged ones.



Features:
1. With A Type/B Type/C Type and Mini USB variety of types of public Socket Interface Design;
2. Installed in the form of DIP/SMT/clip wire/wire type available;
3. Flexible design of terminal contact area to ensure good contact performance and long life requirements;
4. Meet a variety of welding equipment parameters temperature requirements

Welding conditions:
1. Hand soldering
Use a soldering iron of 30 watts, controlled at 350º C approximately 3 seconds while solder applying.
2. Wave soldering/Reflow Soldering
The peak temperature of the wave oven should be set to 260º C max. Condition for soldering temperature

Material:
1. Housing: PBT White/Black
2. Terminal: Phosphor Bronze Plating Gold/Tin
3. Shell: BRASS Plating Ni
4. Salt spray test for 48 hours:


Applications:
The can be used in mobile phones, CD players, cordless telephones, MP3, MP4 PDA notebooks, DVD and digital camera.

Specification
:

Eelectrical Characteristics
Contact Curren Rating 0.5A Min.
Voltage Rating 40V AC (rms)
Withstanding Voltage 500V AC for 1 Min.
Insulation Resistance 100 Megaohms Min.
Contact Resistance 30 mΩ Max.
Mechanical Characteristics
Insertion Force 44.1 N (4.5kgf) Max
Withdrawal Force 9.8 N (1.0kgf) Min.,3 9.2N( 4.0kgf) Max.
Durability 10000 cycles at 100±50 cycles per hour
Environmental Characteristics
Operating Temperature -25ºC to +85ºC


Inspection for USB Connector:

Test Description Requirement Procedure
Visual Inspection The inspection results should be compliant with the individual specification Before the qualification test, all these components shall be examined the Features, Construction as per applicable specification and documents


Mechanical Performance:

Test Description Requirement Procedure
Terminal/ Housing Retention Force 0.40kgf /Pin Min. Measure the contact retention
Insertion Force & Withdrawal Force Insertion Force: 4.50kgf Max.
Withdrawal Force: 1.00kgf Min.
The specimen is mounted to mounting fixtures by the normal mounting means. The peak force shall be recorded at the maximum rate of 25mm per minute
Durability After 10000 cycles test, shall be no evidence of mechanical or electric defects, and shall meet the requirements of connector using. 10000 insertion / extraction cycles at a maximum rate of 100±50 cycles per hour.

Contact Details
Dongguan ShuangYi Electronic Technology Manufacturing co., LTD

Contact Person: Charlotte

Send your inquiry directly to us (0 / 3000)
