DIP 180 Degree Jack Socket 4 Pin USB Charging Connector , 15mm USB 2.0 Female Type A Connector

China DIP 180 Degree Jack Socket 4 Pin USB Charging Connector , 15mm USB 2.0 Female Type A Connector supplier
DIP 180 Degree Jack Socket 4 Pin USB Charging Connector , 15mm USB 2.0 Female Type A Connector supplier DIP 180 Degree Jack Socket 4 Pin USB Charging Connector , 15mm USB 2.0 Female Type A Connector supplier DIP 180 Degree Jack Socket 4 Pin USB Charging Connector , 15mm USB 2.0 Female Type A Connector supplier DIP 180 Degree Jack Socket 4 Pin USB Charging Connector , 15mm USB 2.0 Female Type A Connector supplier

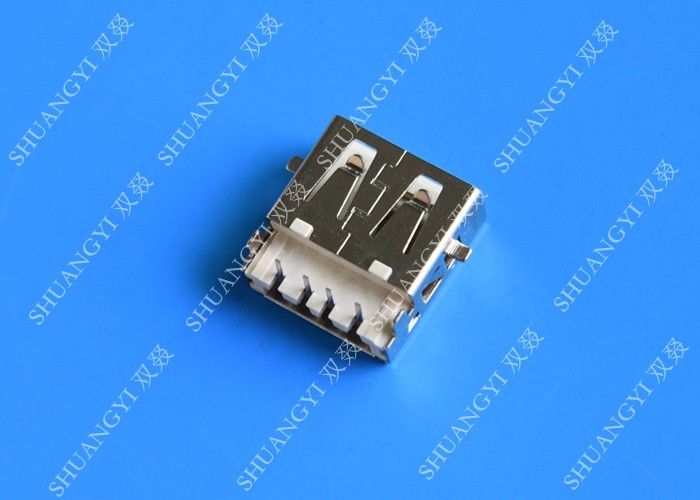

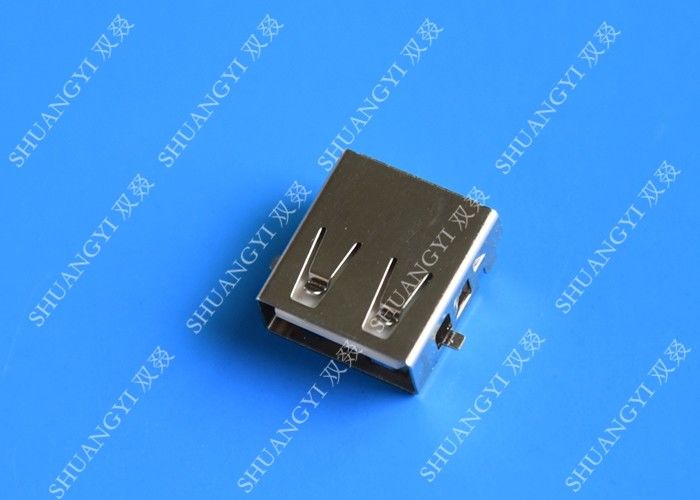

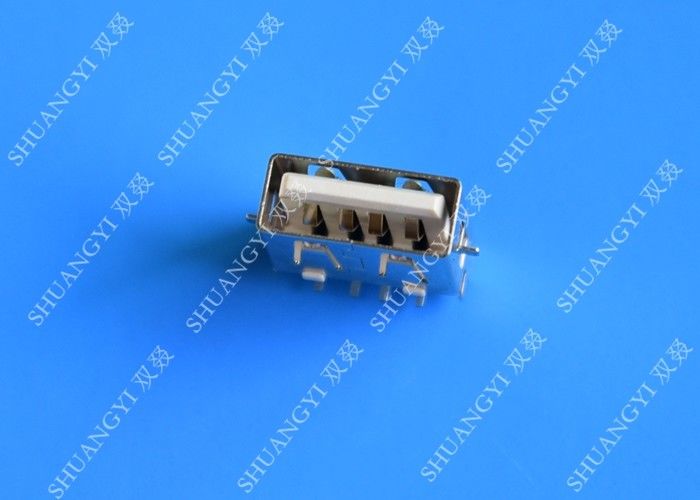

Large Image :  DIP 180 Degree Jack Socket 4 Pin USB Charging Connector , 15mm USB 2.0 Female Type A Connector

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: SHUANG YI
Certification: ISO9001/SGS/UL/RoHS/Reach
Model Number: USB2.0/62

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: 1.Reel Packing 2.Custom Box Packing 3.According To Client's Request
Delivery Time: 7~10 Work Days
Payment Terms: T/T, L/C
Supply Ability: 100000 Piece/Pieces Per Month
Detailed Product Description
Nstallation Mode: Automatic Pop-up Type: SD Jack
Nterface Type: USB Specification: ROHS
Application: Mobile Phone, PCB, Integrated IC, Useage: Cable, Computer, Communication, Car, Power Supply, Battery
High Light:

usb micro connector

,

usb connector pins

DIP 180 Degree Jack Socket 4 Pin USB Charging Connector , 15mm USB 2.0 Female Type A Connector





Product Description:

Eelectrical Characteristics

Contact Curren Rating

0.5A Min.

Voltage Rating

40V AC (rms)

Withstanding Voltage

500V AC for 1 Min.

Insulation Resistance

100 Megaohms Min.

Contact Resistance

30 mΩ Max.

Mechanical Characteristics

Insertion Force

44.1 N (4.5kgf) Max

Withdrawal Force

9.8 N (1.0kgf) Min.,3 9.2N( 4.0kgf) Max.

Durability

10000 cycles at 100±50 cycles per hour

Environmental Characteristics

Operating Temperature

-25ºC to +85ºC

Test Description

Requirement

Procedure

Visual Inspection

The inspection results should be compliant with the individual specification

Before the qualification test, all these components shall be examined the Features, Construction as per applicable specification and documents



Features:

1. With A Type/B Type/C Type and Mini USB variety of types of public Socket Interface Design;

2. Installed in the form of DIP/SMT/clip wire/wire type available;

3. Flexible design of terminal contact area to ensure good contact performance and long life requirements;

4. Meet a variety of welding equipment parameters temperature requirements



Welding conditions:

1. Hand soldering

Use a soldering iron of 30 watts, controlled at 350º C approximately 3 seconds while solder applying.

2. Wave soldering/Reflow Soldering

The peak temperature of the wave oven should be set to 260º C max. Condition for soldering temperature



Material:

1. Housing: PBT White/Black

2. Terminal: Phosphor Bronze Plating Gold/Tin

3. Shell: BRASS Plating Ni



Specification:

Inspection for USB Connector Mechanical Performance

Test Description

Requirement

Procedure

Terminal / Housing Retention Force

0.40kgf /Pin Min.

Measure the contact retention

Insertion Force & Withdrawal Force

Insertion Force: 4.50kgf Max.

Withdrawal Force: 1.00kgf Min.

The specimen is mounted to mounting fixtures by the normal mounting means. The peak force shall be recorded at the maximum rate of 25mm per minute

Durability

After 10000 cycles test, shall be no evidence of mechanical or electric defects, and shall meet the requirements of connector using.

10000 insertion / extraction cycles at a maximum rate of 100±50 cycles per hour.







Applications:

The can be used in mobile phones, CD players, cordless telephones, MP3, MP4 PDA notebooks, DVD and digital camera.
