Molex 4 Pin To 15 Pin SATA Hard Drive Power Cable Female To Male Length 500mm

China Molex 4 Pin To 15 Pin SATA Hard Drive Power Cable Female To Male Length 500mm supplier
Molex 4 Pin To 15 Pin SATA Hard Drive Power Cable Female To Male Length 500mm supplier Molex 4 Pin To 15 Pin SATA Hard Drive Power Cable Female To Male Length 500mm supplier Molex 4 Pin To 15 Pin SATA Hard Drive Power Cable Female To Male Length 500mm supplier Molex 4 Pin To 15 Pin SATA Hard Drive Power Cable Female To Male Length 500mm supplier

Large Image :  Molex 4 Pin To 15 Pin SATA Hard Drive Power Cable Female To Male Length 500mm

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: SHUANG YI
Certification: ISO9001/ISO14001/SGS/UL/RoHS/Reach
Model Number: SY-B160033-0

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: 1.Custom polybag packing 2.Custom paper box packing 3.According to client's request
Delivery Time: 7~10 Work days
Payment Terms: T/T, L/C
Supply Ability: 100000 Pieces Per Month
Detailed Product Description
Application: Computer, Power Color: Black Red Yellow
Connector A: Sata 15Pin Connector B: Molex 4Pin
Length: Optional Gender: Female To Female
Outer Diameter: Flat Shielding: Non-Shielded
High Light:

wire harness cable assembly

,

cable and harness assembly

Molex 4 Pin To 15 Pin SATA Hard Drive Power Cable Female To Male Length 500mm

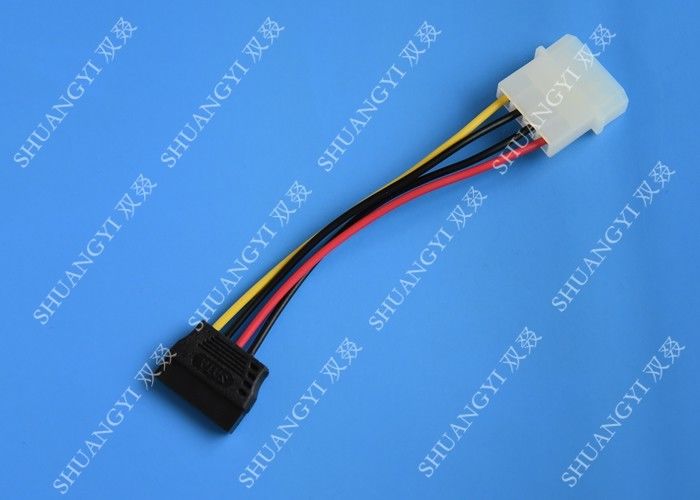

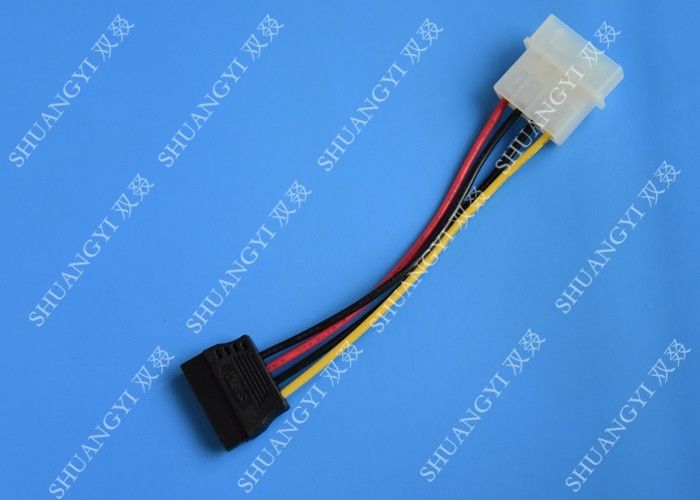

SATA power cable: 4-Pin housing to 15-Pin; supply electricity for hard disk

The P/N 1959 series cable is a Serial ATA power to 4-pin molex cable for new high-speed SATA disk drives.

It is designed to convert a standard 4-pin molex connector, as used for standard IDE hard drives and CD-ROMs, into the new SATA power connector.

The new Serial ATA interface is designed to replace the older parallel-style IDE. Serial ATA offers higher speeds (150 MB/sec) and longer-length cables without the mess of wide ribbons.



Specifications:

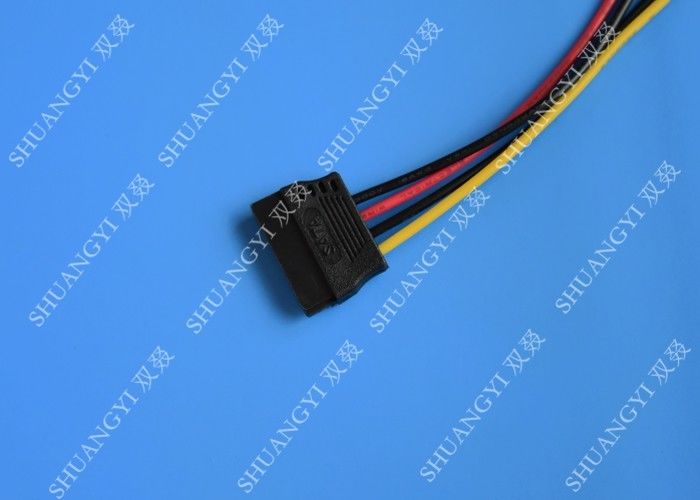

1. Connector A: 15pin SATA Female connector

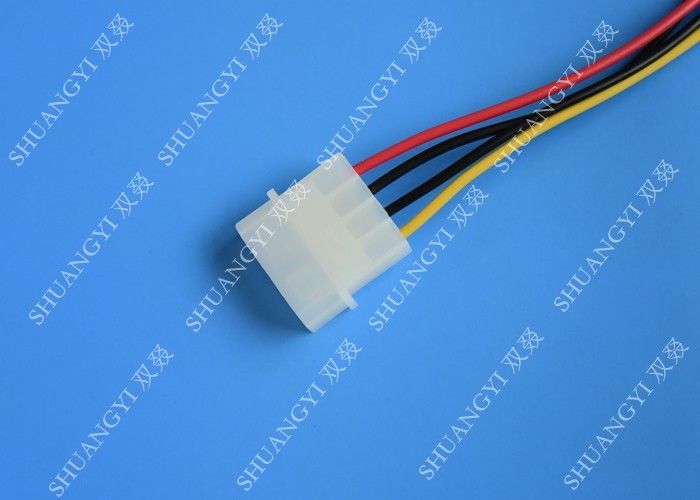

2. Connector B: 4 pin Male Molex connector
3. Material: PBT / LCP/PVC/TPE/PU/TPU
4. Terminal: Phosphor Bronze
5. Cable: 26awg, 28awg, 30awg
6. Transfer rates:Up to 1.5 gbps (can be customized 3 gbps)
7. Conductor: All copre/Copper ,Tinned copper or optional
8. OD&Length: Customized
9. Color: Any color are available
10. Shielding: Braid

11. High quality 4 pin Molex connecter to 15PIN Serial ATA Power Splitter Cable

12. Use your high speed Serial ATA (SATA) hard drives with the original 4 pin cord Connect 1x4 pin Molex power connector to 15 PIN Serial ATA power connecters

13. Great for users with limited numbers of SATA power cables and multiple SATA drives, or for a power supply that does not provide one.
14. Transfer a 4-Pin power connector to SATA Female power connectors
15. Simple connect the 4pin male connector to a 4pin female connector which is supplied by your computer power adapter
16. Compliant with Serial ATA 1.0 Standards
17. Performance:support computor,pc,and so on device
18. Easy to install and easy to use



Electrical:

1. Hi-Pot Test: DC300V
2. Insulation Resistance: 10M Ohms (Min)
3. Contactor Resistance: 1 Ohms (Max)
4. 100% Open Short and Miss Wire Test



Application:

Suit for 3.5” SATA Hard Disk and 3.5” SATA CD-ROM, DVD-ROM, DVD-R/W, CD-R/W Computer, DVD, Torage, HDD, Hard disk, CD of the firmware, CDRWs,DVD and so on.
